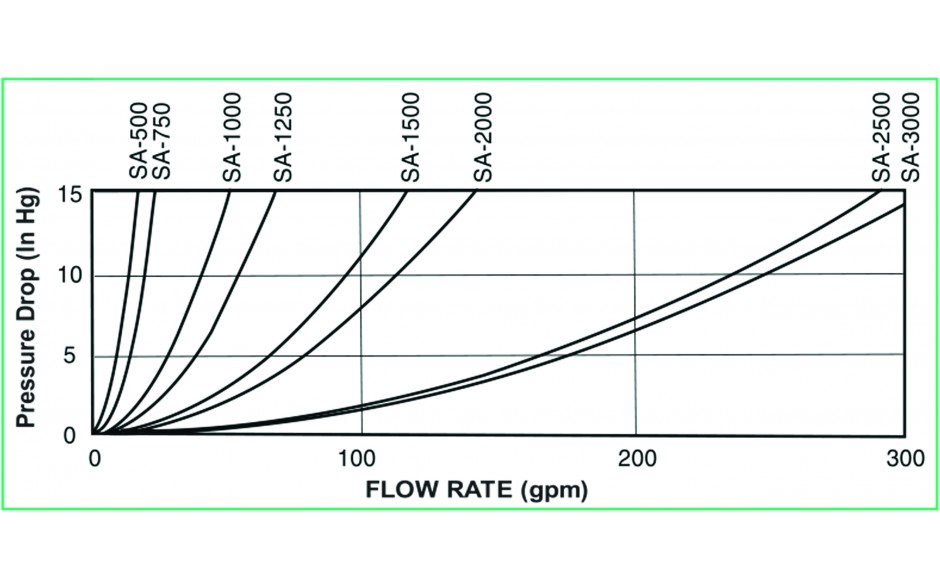

  • flow-chart

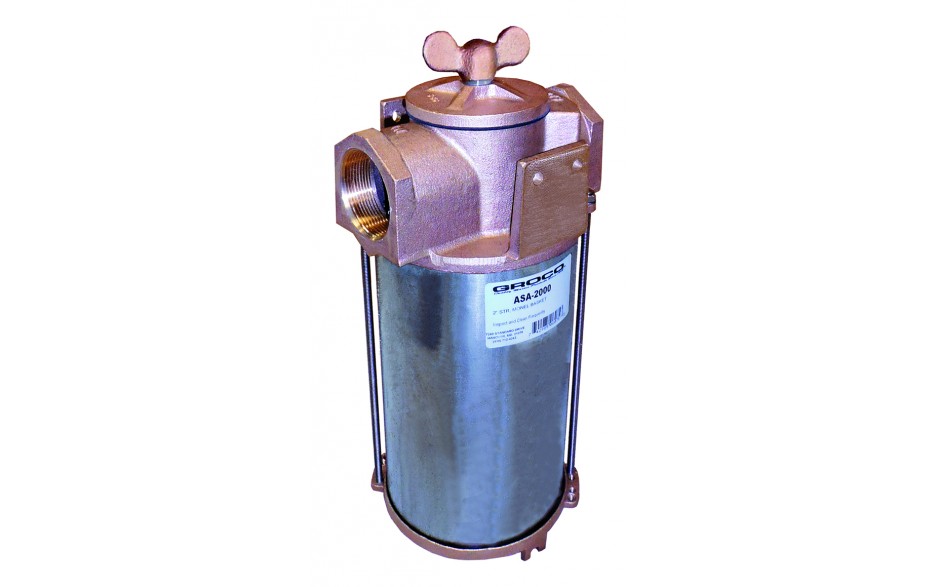

ASA-1000-S

 1" Raw Water Strainer with #304 SS Basket

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Fine mesh filter baskets are also available.

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel (-S Suffix)
Thread NPT 1"
Open Area Ratio 29
Dimensions
Thread NPT1"
A10.5
B5.5
C5
D2.8
E -
Open Area Ratio29

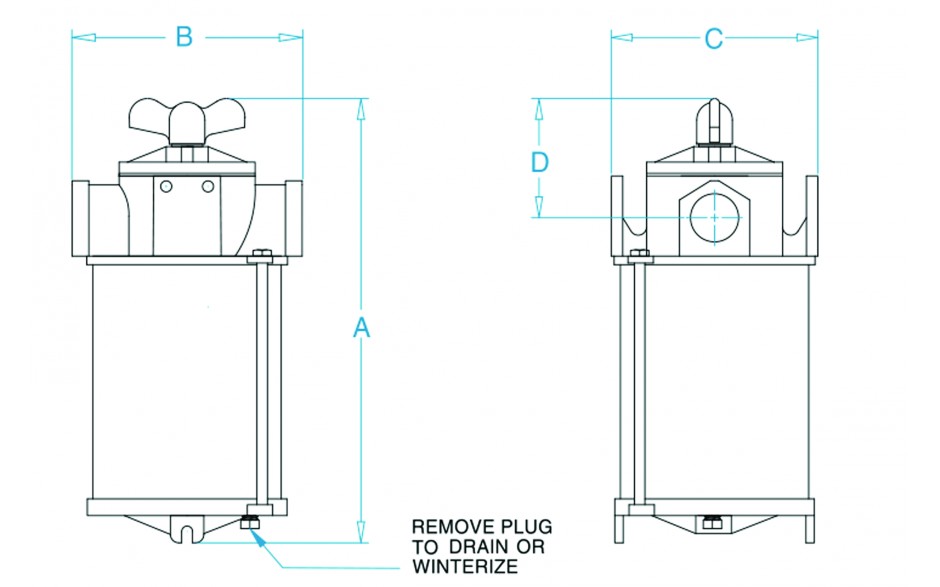

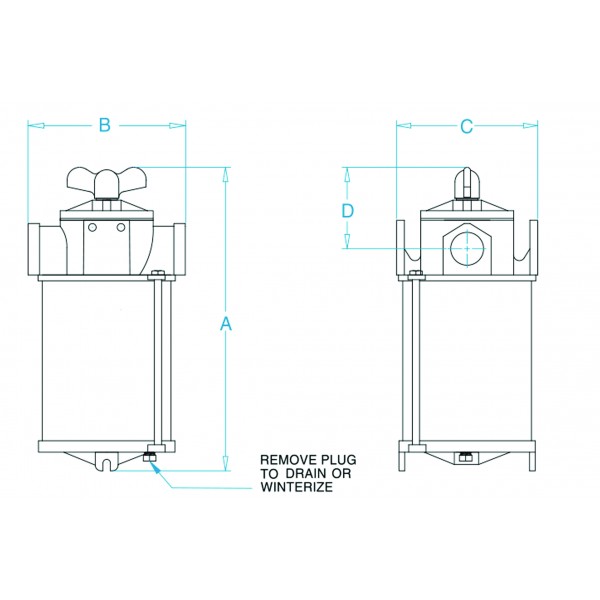

dimensions image
 Download Image  Open in New Window
Individual Parts

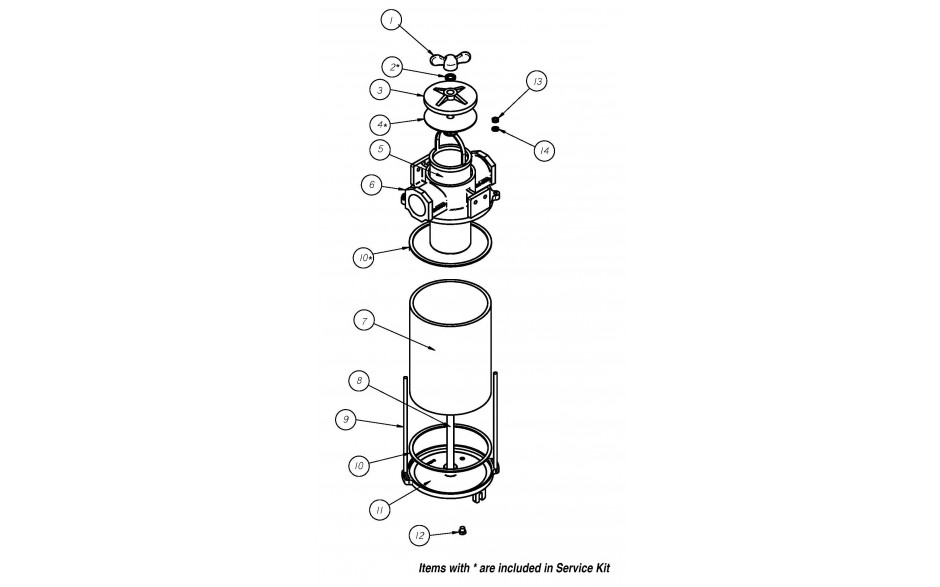

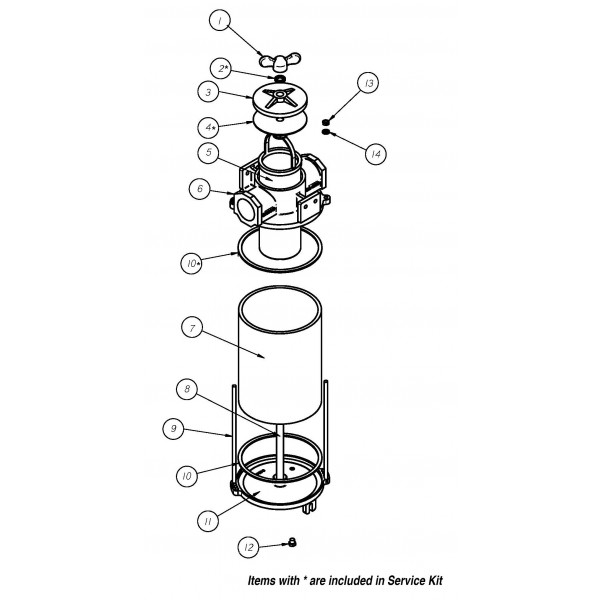

exploded image
 Download Image  Open in New Window
  • 1
    SVS-5
    $30.00
    Qty Per Unit: 1
  • 2
    500-K
    $1.00
    Qty Per Unit: 1
  • 3
    S-751
    $104.00
    Qty Per Unit: 1
  • 4
    S-751-A
    $4.00
    Qty Per Unit: 1
  • 5
    BS-4
    $76.00
    Qty Per Unit: 1
  • 6
    S-1000-A
    $420.00
    Qty Per Unit: 1
  • 7
    AS-77
    $259.00
    Qty Per Unit: 1
  • 8
    S-72
    $128.00
    Qty Per Unit: 1
  • 9
    S-73-X
    $15.00
    Qty Per Unit: 2
  • 10
    #8R SET
    $20.00
    Qty Per Unit: 2
  • 11
    S-73-A
    $183.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-2
    $37.00
    Qty Per Unit: 1
