ARGS-3015-P

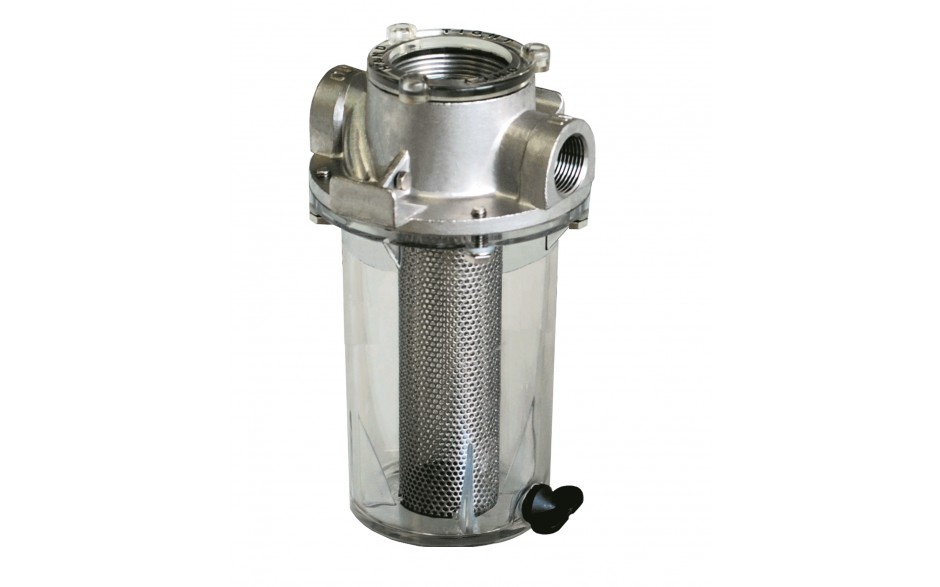

3" Raw Water Strainer with Plastic Basket
Features:
- #316 Stainless Steel Head Casting
- Mounting System Allows Removal Without Tools
- O-Ring Seal All Joining Surfaces
- Filter Basket Options
- #304 SS (Standard)
- Monel
- Non-Metallic
- One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
- Improved Drain Plug
- Non-Metallic Cap Magnifies Internal Viewing
- NPT Threaded Ports
- Improved Basket Design
- Bonding Connection Both Sides
- UL Listed 255-D
Additional Information
Spec Sheet | No |
---|---|
Basket Type | Plastic (-P Suffix) |
Thread NPT | 3" |
Open Area Ratio | 5 |
Dimensions
Thread NPT | 3" |
A | 13.3 |
B | 7.3 |
C | 7.8 |
D | 3.5 |
E | - |
Open Area Ratio | 5 |

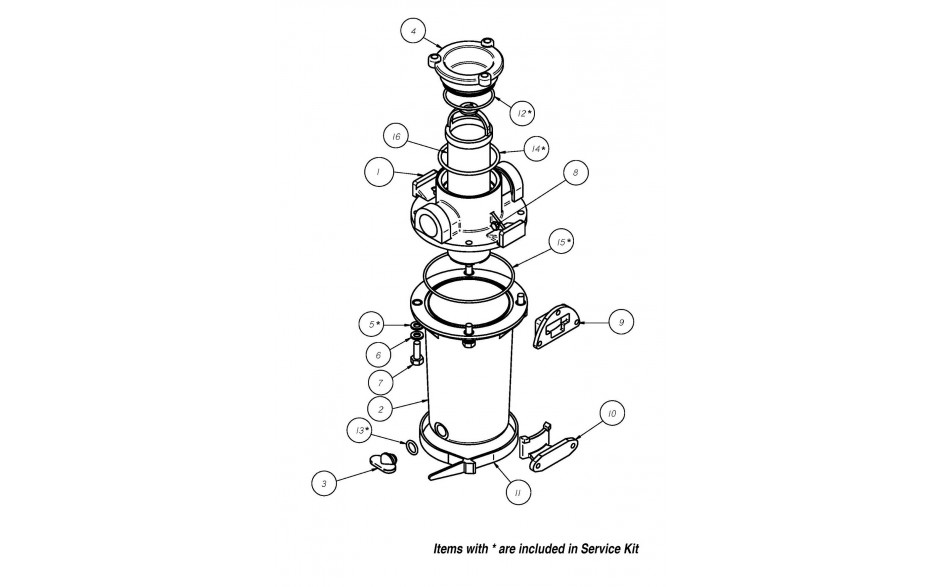

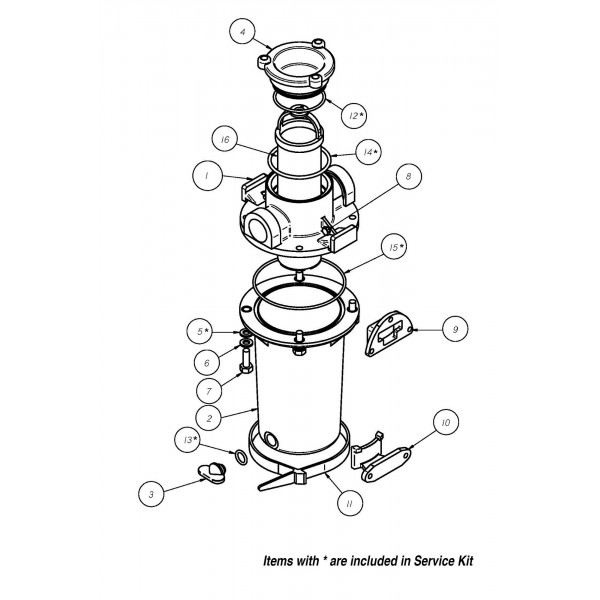

Individual Parts
-
1ARG3010H316$999,999.00Qty Per Unit: 1
-
2ARG-1503$145.00Qty Per Unit: 1
-
3ARG-756$6.00Qty Per Unit: 1
-
4ARG-1501-PC$45.00Qty Per Unit: 1
-
5PFW-2 SET$5.00Qty Per Unit: 1
-
614SS$1.00Qty Per Unit: 6
-
71420X34HS$1.00Qty Per Unit: 6
-
81024X14HB$3.00Qty Per Unit: 2
-
10ARG-1504$46.00Qty Per Unit: 1
-
11ARG-1502$9.00Qty Per Unit: 1
-
122-238$3.00Qty Per Unit: 1
-
132-011 (2008 & Older)$1.00Qty Per Unit: 1
-
132-111$1.00Qty Per Unit: 1
-
142-234$3.00Qty Per Unit: 1
-
152-256$4.00Qty Per Unit: 1
-
16BP-12$79.00Qty Per Unit: 1
-
17ARG-3$26.00Qty Per Unit: 1
