ARGS-1500 Series

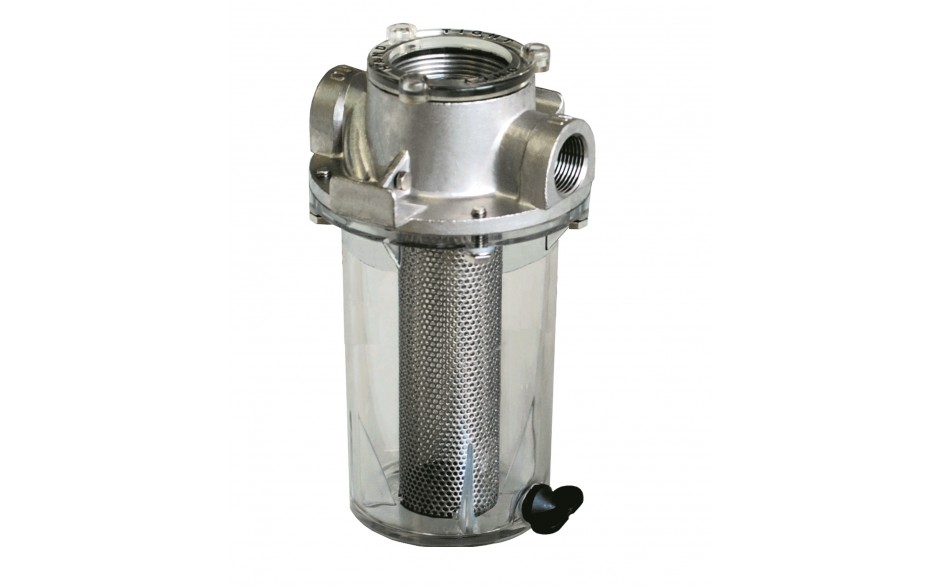

1-1/2" Raw Water Strainer

Features:

  • #316 Stainless Steel Head Casting
  • Mounting System Allows Removal Without Tools
  • O-Ring Seal All Joining Surfaces
  • Filter Basket Options
    • #304 SS (Standard)
    • Monel
    • Non-Metallic
  • One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
  • Improved Drain Plug
  • Non-Metallic Cap Magnifies Internal Viewing
  • NPT Threaded Ports
  • Improved Basket Design
  • Bonding Connection Both Sides
  • UL Listed 255-D

Additional Information
Spec Sheet No
Thread NPT 1-1/2"
Open Area Ratio 20
Dimensions
Thread NPT1-1/2"
A11.4
B8.3
C7.8
D2.5
E -
Open Area Ratio20
Individual Parts
  • 1
    ARG2010H316
    $999,999.99
    Qty Per Unit: 1
  • 1
    BUSHING-22
    $139.00
    Qty Per Unit: 2
  • 2
    ARG-1503
    $132.00
    Qty Per Unit: 1
  • 3
    ARG-506 (2008 & Older)
    $8.00
    Qty Per Unit: 1
  • 3
    ARG-756
    $4.00
    Qty Per Unit: 1
  • 4
    ARG-1501-PC
    $35.00
    Qty Per Unit: 1
  • 5
    PFW-2 SET
    $3.00
    Qty Per Unit: 1
  • 6
    14SS
    $1.00
    Qty Per Unit: 6
  • 7
    1420X34HS
    $1.00
    Qty Per Unit: 6
  • 8
    1024X14HB
    $2.00
    Qty Per Unit: 2
  • 10
    ARG-1504
    $27.00
    Qty Per Unit: 1
  • 11
    ARG-1502
    $5.00
    Qty Per Unit: 1
  • 12
    2-238
    $2.00
    Qty Per Unit: 1
  • 13
    2-111
    $1.00
    Qty Per Unit: 1
  • 13
    2-011 (2008 & Older)
    $1.00
    Qty Per Unit: 1
  • 14
    2-234
    $2.00
    Qty Per Unit: 1
  • 15
    2-256
    $3.00
    Qty Per Unit: 1
  • 16
    BS-6
    $46.00
    Qty Per Unit: 1
  • 16
    BM-6
    $117.00
    Qty Per Unit: 1
  • 16
    BP-6
    $49.00
    Qty Per Unit: 1
  • 17
    ARG-3
    $17.00
    Qty Per Unit: 1
