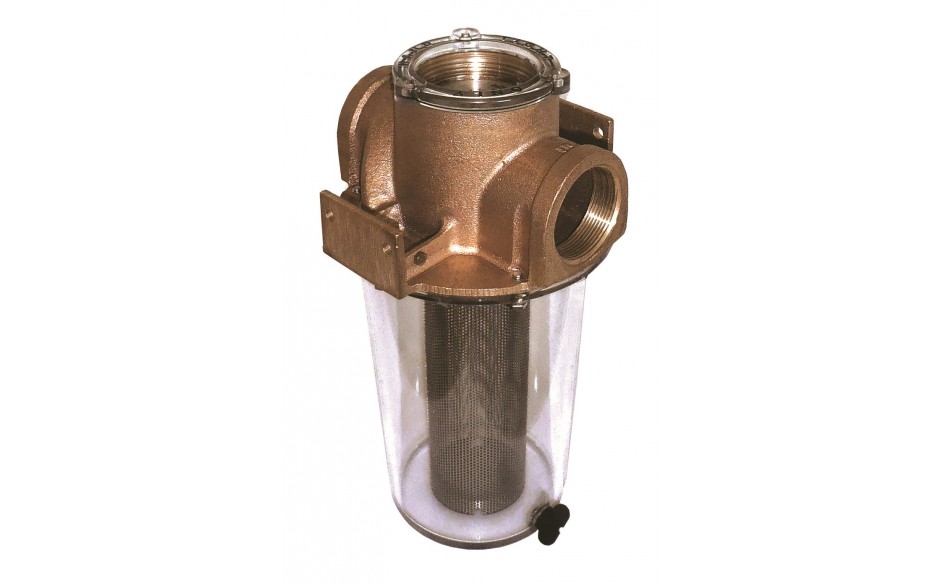

ARG-2520-S
2-1/2" Raw Water Strainer with #304 SS Basket
Features:
- Mounting System Allows Removal Without Tools
- Bonding Connection Both Sides
- O-Ring Seal All Joining Surfaces
- Filter Basket Options
- #304 SS (Standard)
- Monel
- Non-Metallic
- One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
- Improved Drain Plug
- Non-Metallic Cap Magnifies Internal Viewing
- NPT or BSPP Threaded Ports
- Improved Basket Design
- C84400 bronze head casting
- UL Listed 255-D
Additional Information
Spec Sheet | No |
---|---|
Basket Type | #304 Stainless Steel (-S Suffix) |
Thread NPT | 2-1/2" |

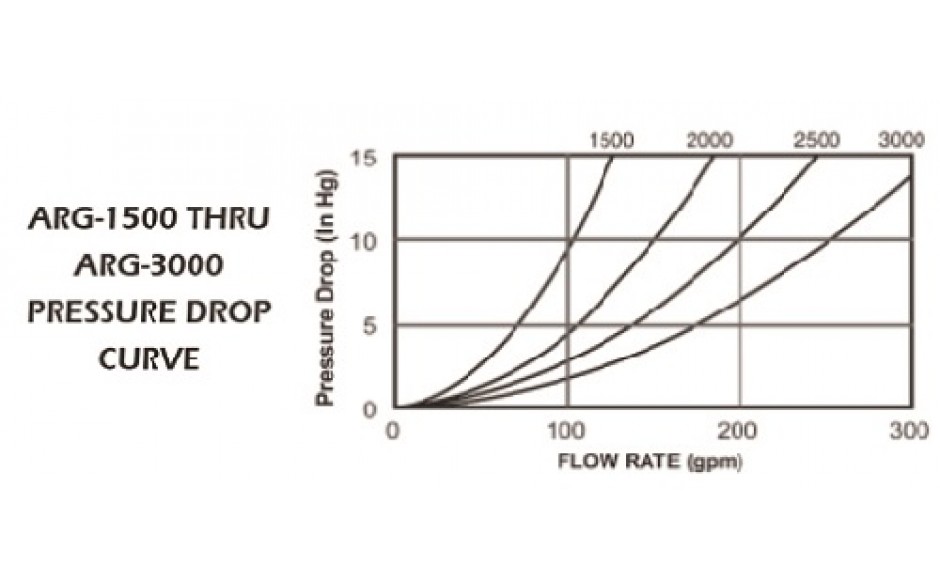

Open Area Ratio | 9 |
Dimensions
Thread NPT | 2-1/2" |
A | 14.6 |
B | 8.3 |
C | 7.8 |
D | 3.1 |
E | - |
Open Area Ratio | 9 |

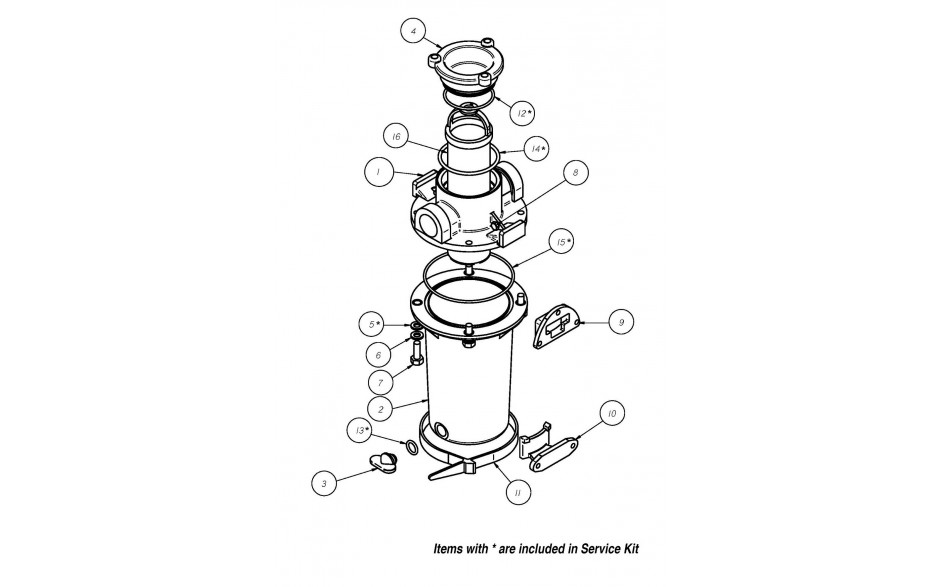

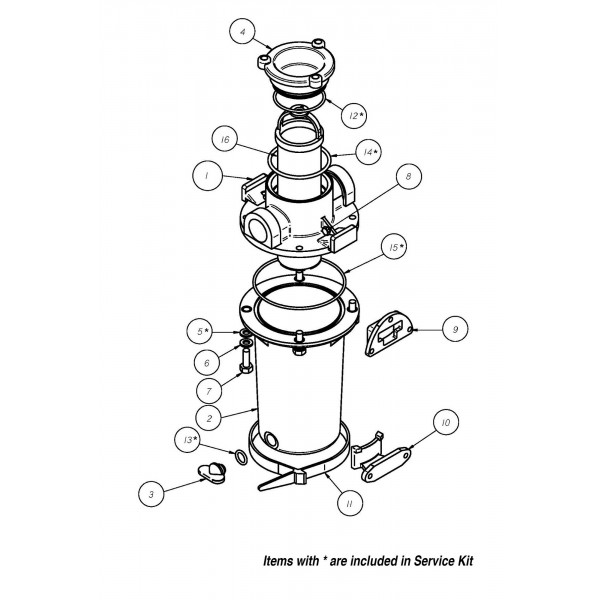

Individual Parts
-
1ARG-2510-H$1,144.00Qty Per Unit: 1
-
2ARG-2003$166.00Qty Per Unit: 1
-
3ARG-756$6.00Qty Per Unit: 1
-
4ARG-1501-PC$45.00Qty Per Unit: 1
-
5PFW-2 SET$5.00Qty Per Unit: 1
-
614SS$1.00Qty Per Unit: 6
-
71420X34HS$1.00Qty Per Unit: 6
-
81024X14HB$3.00Qty Per Unit: 2
-
10ARG-1504$46.00Qty Per Unit: 1
-
11ARG-1502$9.00Qty Per Unit: 1
-
122-234$3.00Qty Per Unit: 1
-
132-011 (2008 & Older)$1.00Qty Per Unit: 1
-
132-111$1.00Qty Per Unit: 1
-
142-238$3.00Qty Per Unit: 1
-
152-256$4.00Qty Per Unit: 1
-
16BS-10$98.00Qty Per Unit: 1
-
17ARG-3$26.00Qty Per Unit: 1
