ARG-1250-S

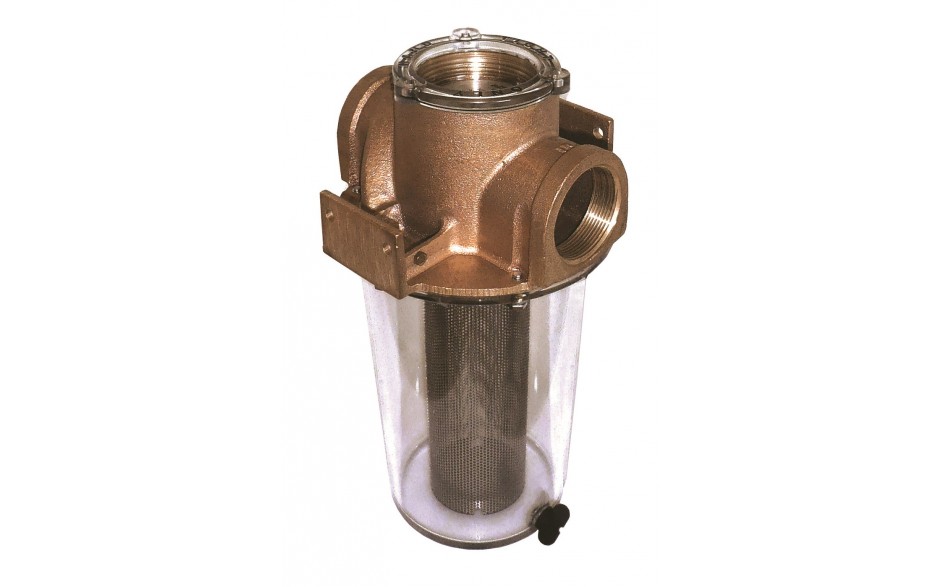

1-1/4" Raw Water Strainer with #304 SS Basket
Features:
- Mounting System Allows Removal Without Tools
- Bonding Connection Both Sides
- O-Ring Seal All Joining Surfaces
- Filter Basket Options
- #304 SS (Standard)
- Monel
- Non-Metallic
- One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
- Improved Drain Plug
- Non-Metallic Cap Magnifies Internal Viewing
- NPT or BSPP Threaded Ports
- Improved Basket Design
- C84400 bronze head casting
- UL Listed 255-D
Additional Information
Spec Sheet | No |
---|---|
Basket Type | #304 Stainless Steel (-S Suffix) |
Thread NPT | 1-1/4" |
Open Area Ratio | 24 |
Dimensions
Thread NPT | 1-1/4" |
A | 10.6 |
B | 5.8 |
C | 6.5 |
D | 2.3 |
E | - |
Open Area Ratio | 24 |

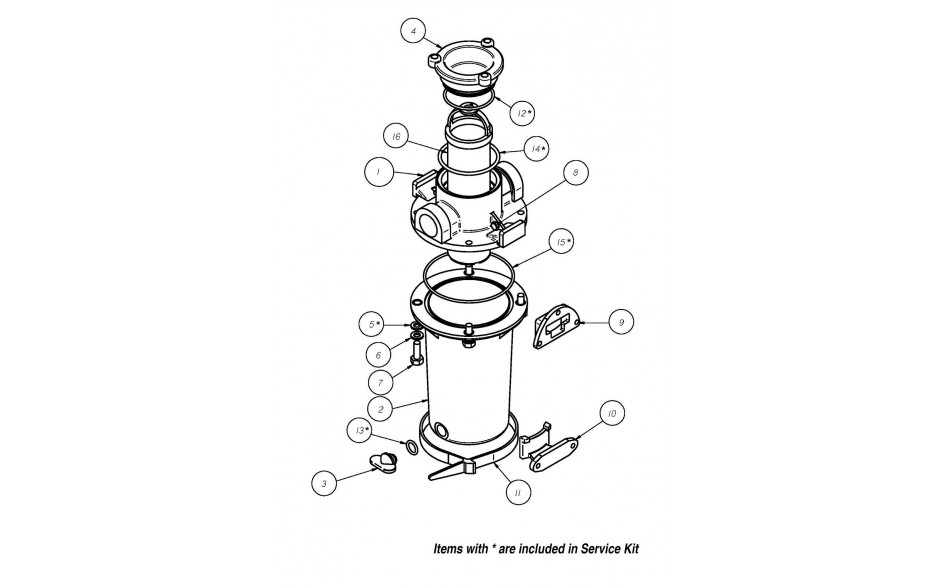

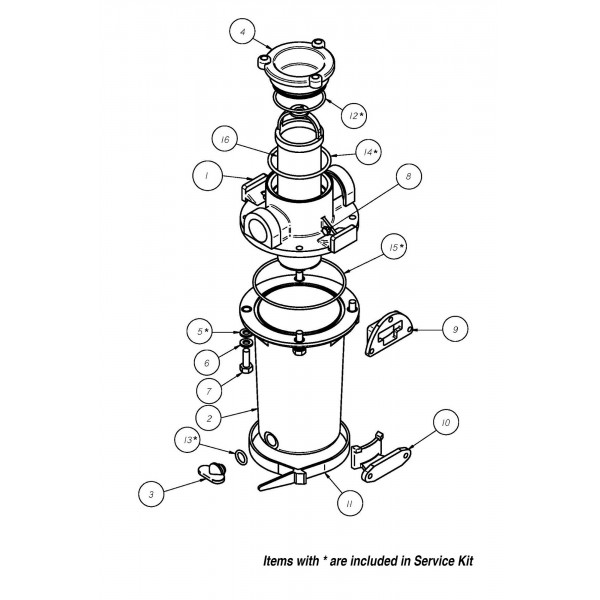

Individual Parts
-
1ARG-1260-H$542.00Qty Per Unit: 1
-
2ARG-1253$106.00Qty Per Unit: 1
-
3ARG-756$6.00Qty Per Unit: 1
-
4ARG-1001-PC$36.00Qty Per Unit: 1
-
5PFW-2 SET$5.00Qty Per Unit: 1
-
614SS$1.00Qty Per Unit: 6
-
71420X34HS$1.00Qty Per Unit: 6
-
81024X14HB$3.00Qty Per Unit: 2
-
9ARG-1005$17.00Qty Per Unit: 1
-
10ARG-1004$27.00Qty Per Unit: 1
-
11ARG-502$8.00Qty Per Unit: 1
-
122-232$2.00Qty Per Unit: 1
-
132-111$1.00Qty Per Unit: 1
-
132-011 (2008 & Older)$1.00Qty Per Unit: 1
-
142-229$2.00Qty Per Unit: 1
-
152-157$3.00Qty Per Unit: 1
-
16BS-5$78.00Qty Per Unit: 1
-
17ARG-2$23.00Qty Per Unit: 1
