APHS-6000-2 AL

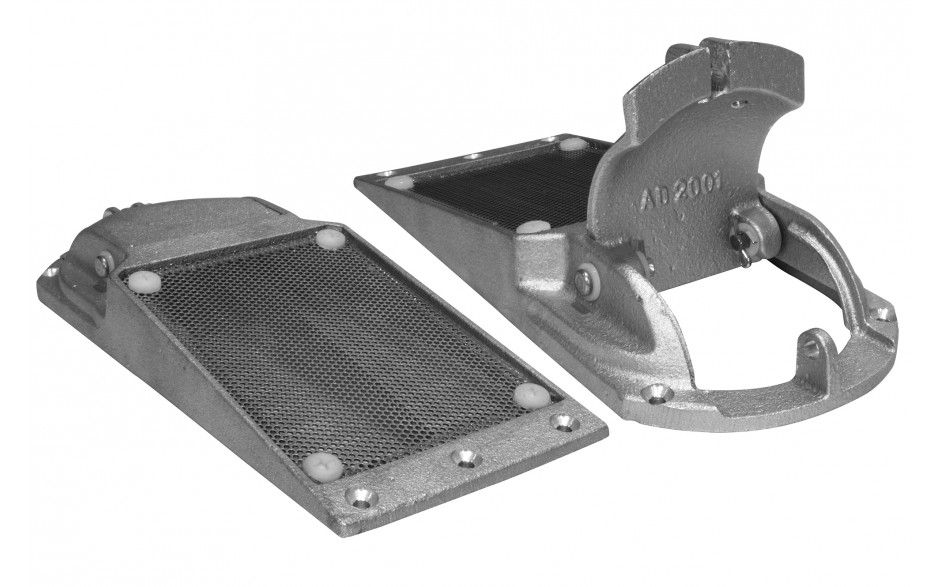

Aluminum Hull Scoop Strainer with Access Door for up to 4" Thru Hull

FEATURES:

  • Patented access door design allows easy access to Thru Hulls.
  • #319 aluminum body and door.

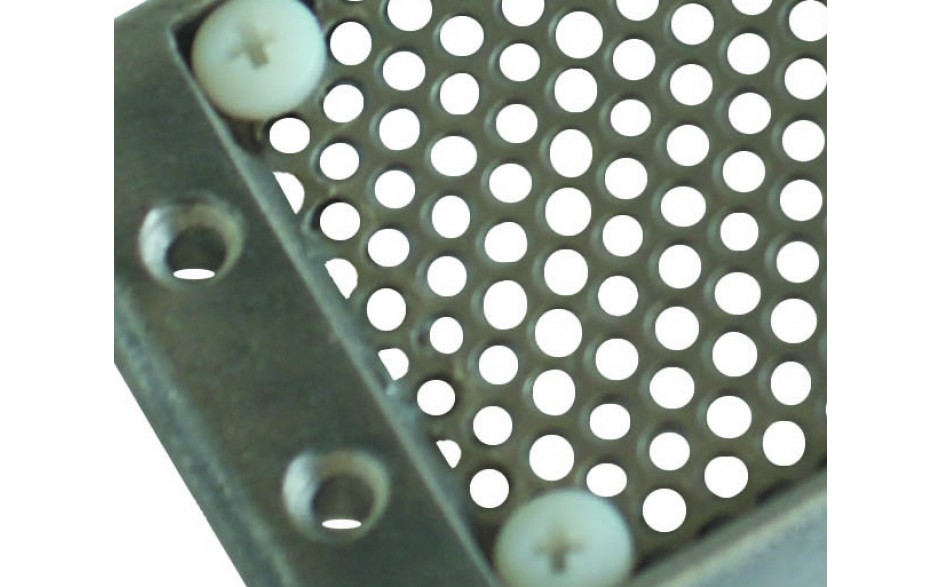

  • #304 filter screen available in .077", .125", and .188" perforated diameters.
  • Easy field replaceable screen.
  • Pressure relief holes in door casting.

Additional Information
Max T-Hull 4"
Perf Dia. .125"

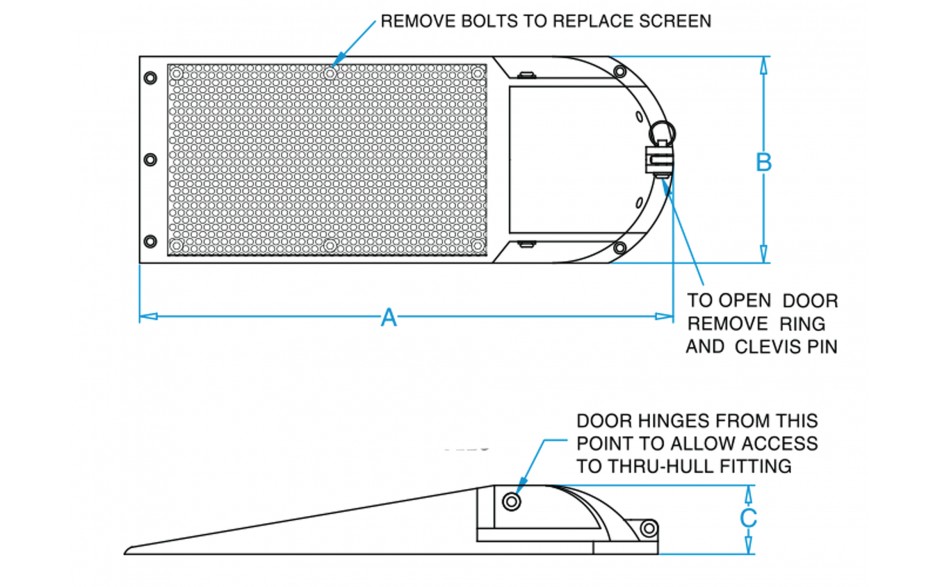

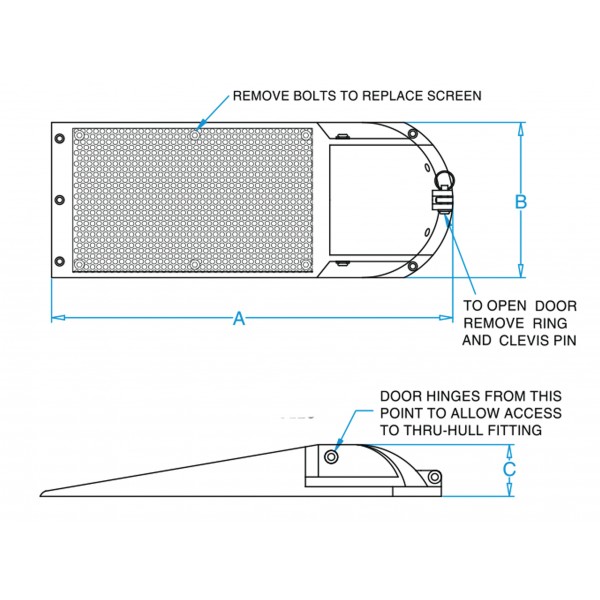

Dimensions
Max T-Hull4"
Perf Dia..125"
A20.25
B11
C4
Individual Parts
  • 1
    93-6000-02
    $128.00
    Qty Per Unit: 1
  • 2
    1420X38PPP
    $1.00
    Qty Per Unit: 9
  • 3
    PIN-11
    $2.00
    Qty Per Unit: 2
  • 4
    PIN-8
    $6.00
    Qty Per Unit: 1
  • 5
    PFW-2 SET
    $5.00
    Qty Per Unit: 2
  • 6
    PIN-9
    $11.00
    Qty Per Unit: 2
  • 7
    PIN-12
    $2.00
    Qty Per Unit: 2
  • 9
    APHS-6000-A
    $999,999.00
    Qty Per Unit: 1
