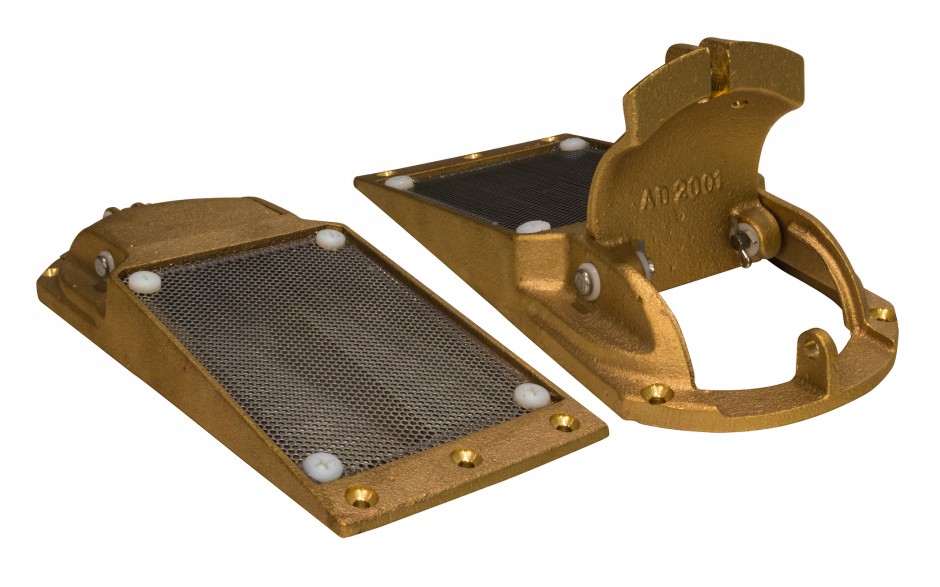

APHS-3000-3

Bronze Hull Scoop Strainer with Access Door for up to 3" Thru Hull

FEATURES:

  • Patented access door design allows easy access to Thru Hulls.
  • C84400 bronze body and door.

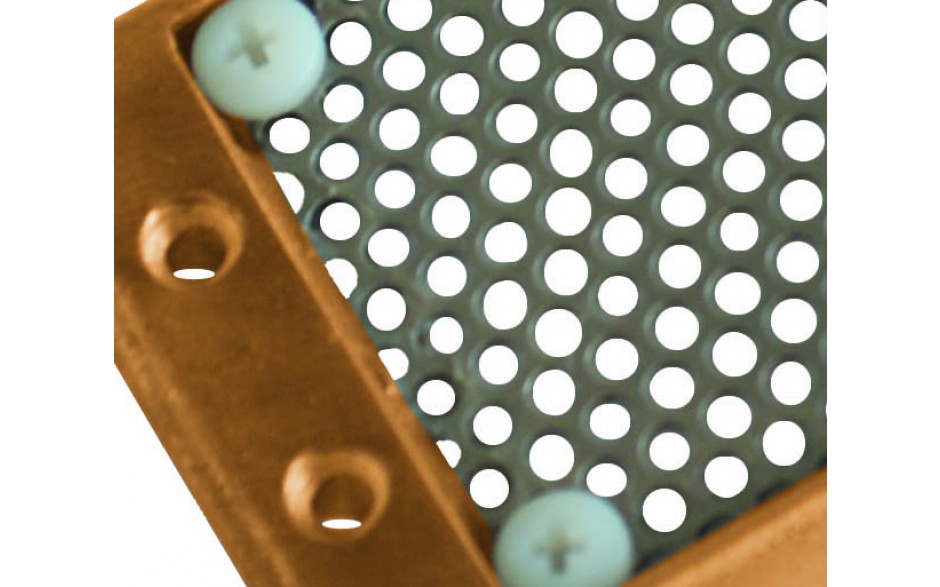

  • Cast filter slots.
  • Pressure relief holes in door casting.

Additional Information
Max T-Hull 3"
Perf Dia. .188"
Dimensions
Max T-Hull3"
Perf Dia..188"
A15.38
B6
C2

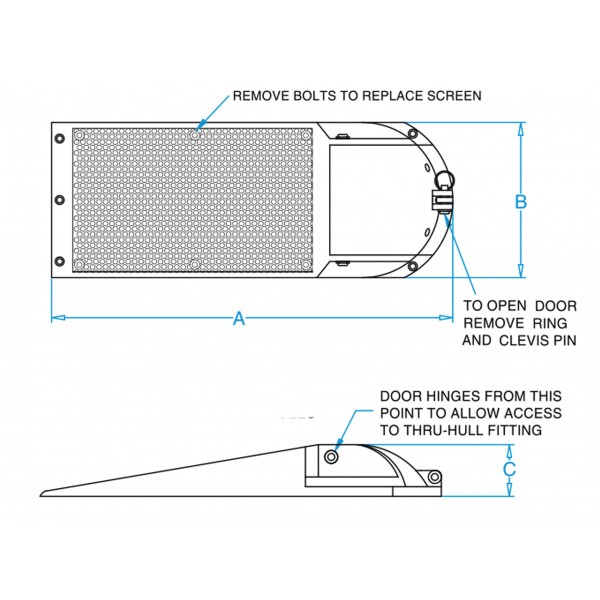

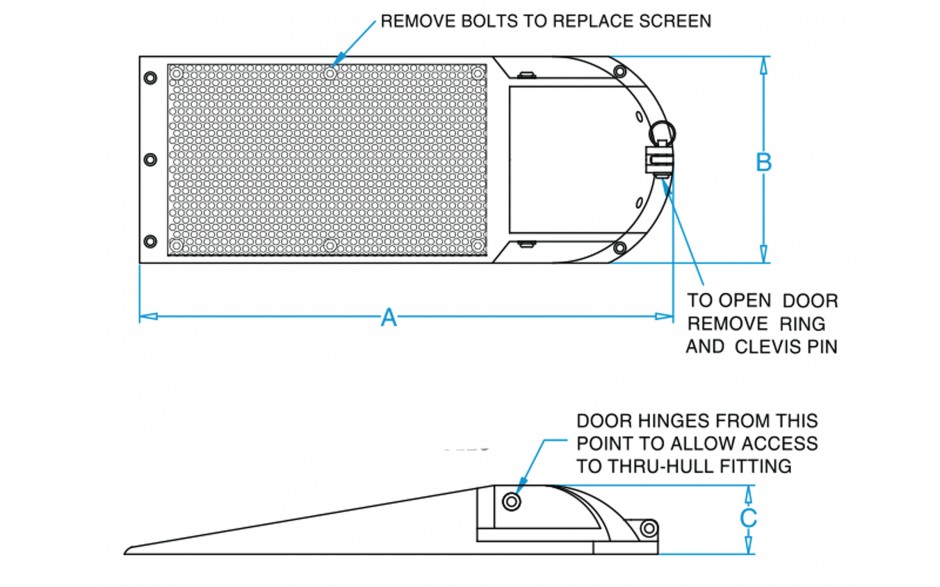

dimensions image
 Download Image  Open in New Window
Individual Parts

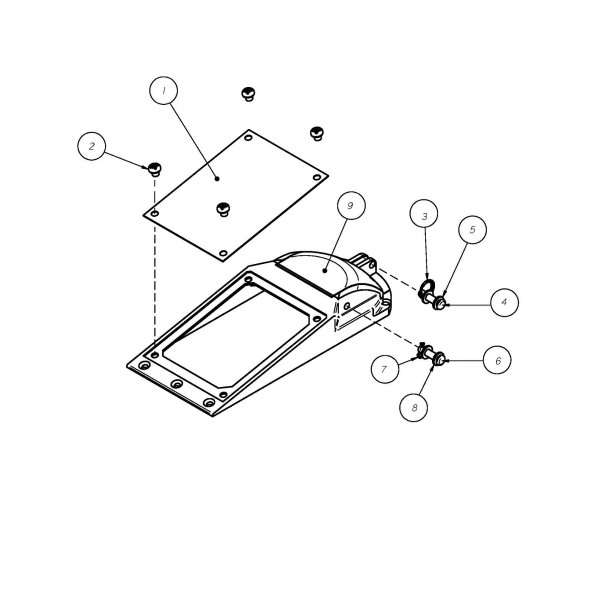

exploded image
 Download Image  Open in New Window
  • 1
    93-3000-03
    $51.00
    Qty Per Unit: 1
  • 2
    1420X38PPP
    $1.00
    Qty Per Unit: 7
  • 3
    PIN-11
    $2.00
    Qty Per Unit: 1
  • 4
    PIN-8
    $6.00
    Qty Per Unit: 3
  • 5
    PFW-2 SET
    $5.00
    Qty Per Unit: 1
  • 7
    PIN-12
    $2.00
    Qty Per Unit: 2
  • 9
    APHS-3000-B
    $999,999.00
    Qty Per Unit: 1
