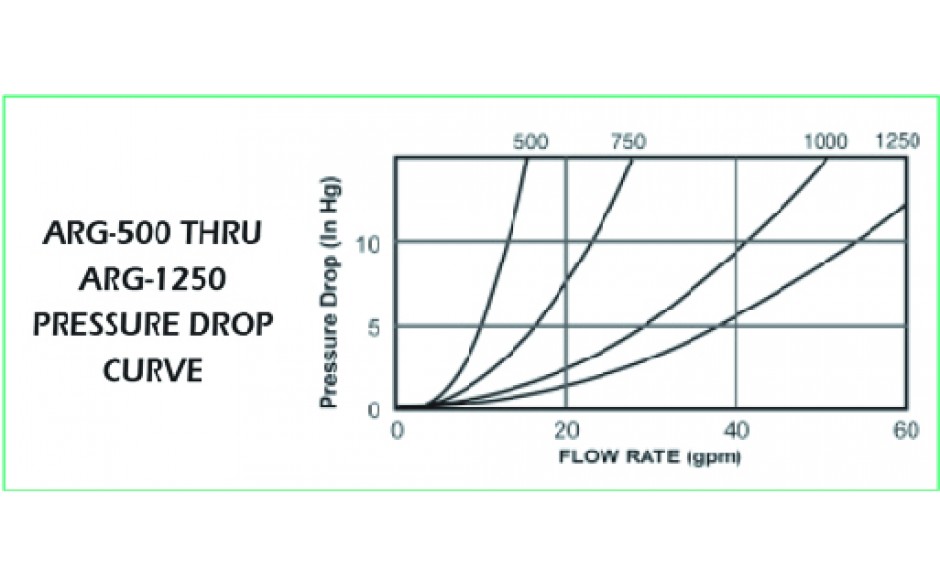

  • flow-chart

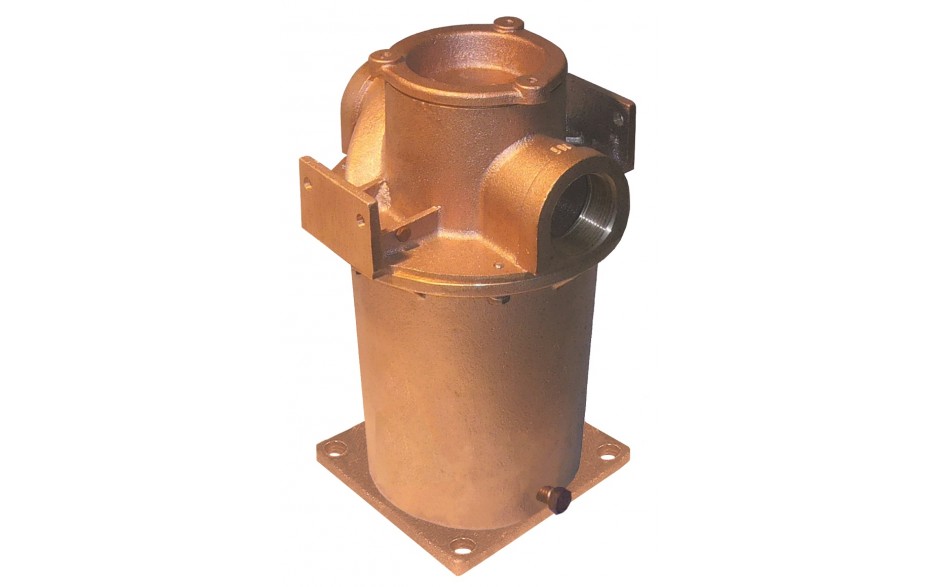

AARG-1000 Series

1" Raw Water Strainer

Features:

  • ABS Compliant Raw ARG Water Strainer
  • 100% Bronze Strainer (Cap, Head, Cylinder, and Drain Plug)
  • O-Ring Seal All Joining Surfaces
  • Filter Basket Options
    • #304 SS (Standard)
    • Monel
    • Non-Metallic
  • Bonding Connection Both Sides
  • NPT or BSPP Threaded Ports
  • Improved Basket Design
  • C84400 Bronze Cap, Casting, and Enclosure
  • UL Listed 255-D

Additional Information
Spec Sheet No
Thread NPT 1"
Open Area Ratio 28
Dimensions
Thread NPT1"
A9
B6.8
C6.5
D2
E4.1
Open Area Ratio28

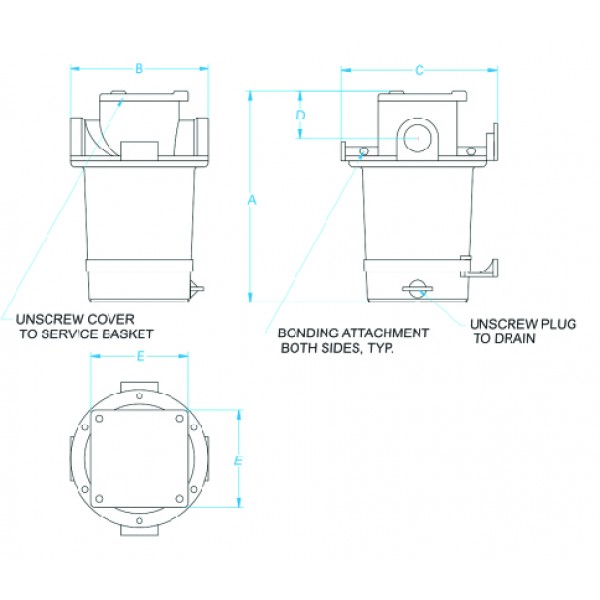

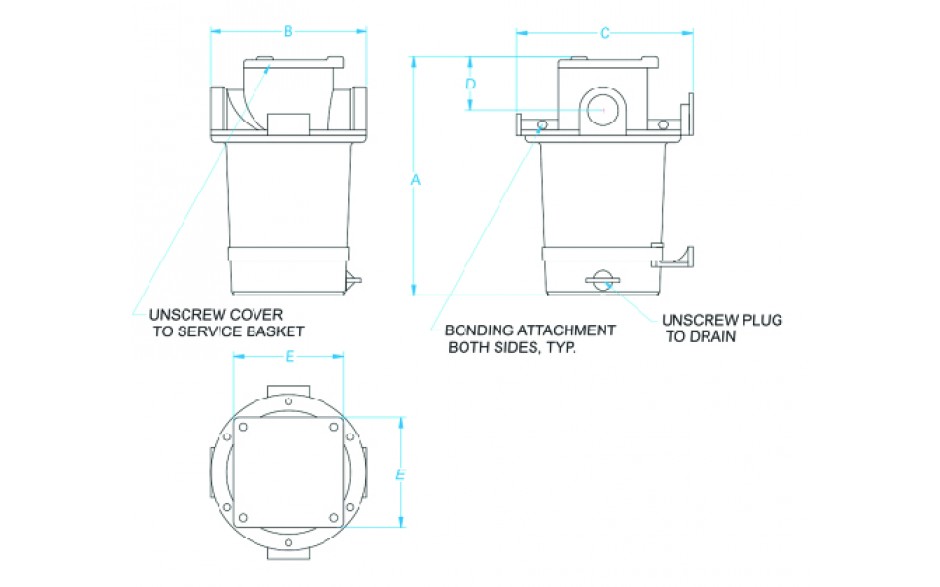

dimensions image
 Download Image  Open in New Window
Individual Parts

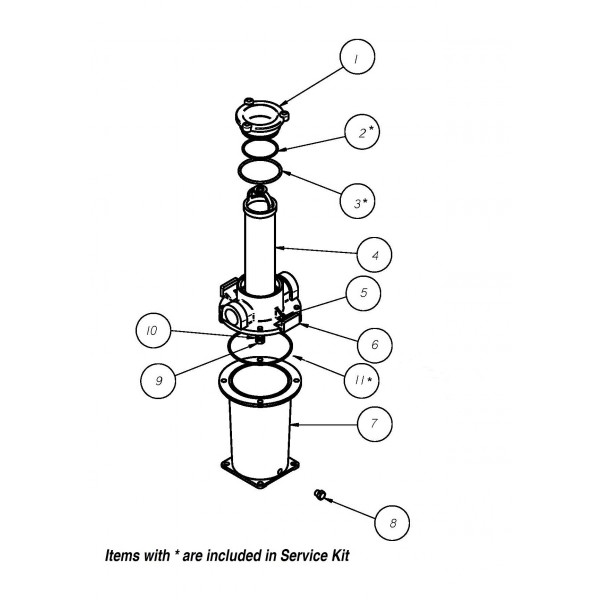

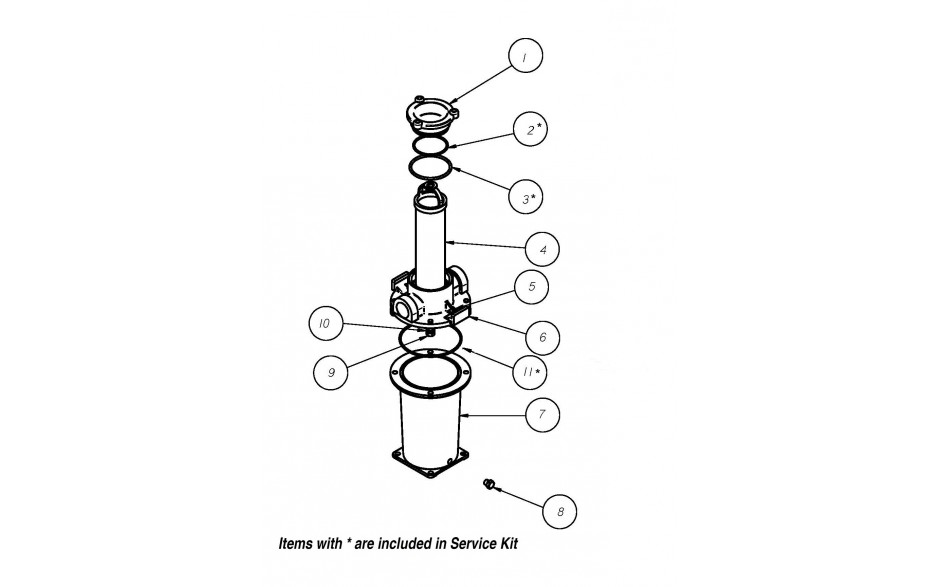

exploded image
 Download Image  Open in New Window
  • 1
    ARG-1001-C
    $167.00
    Qty Per Unit: 1
  • 2
    2-232
    $3.00
    Qty Per Unit: 1
  • 3
    2-229
    $2.00
    Qty Per Unit: 1
  • 4
    BP-1
    $60.00
    Qty Per Unit: 1
  • 4
    BS-1
    $67.00
    Qty Per Unit: 1
  • 4
    BM-1
    $131.00
    Qty Per Unit: 1
  • 5
    1024X14HB
    $3.00
    Qty Per Unit: 2
  • 6
    ARG-1010-H
    $562.00
    Qty Per Unit: 1
  • 7
    AARG-1003
    $1,050.00
    Qty Per Unit: 1
  • 8
    1827HB
    $3.00
    Qty Per Unit: 2
  • 9
    1420X34HS
    $1.00
    Qty Per Unit: 6
  • 10
    14SS
    $1.00
    Qty Per Unit: 6
  • 11
    2-234
    $3.00
    Qty Per Unit: 1
  • 12
    ARG-2
    $27.00
    Qty Per Unit: 1
