933-2000-01

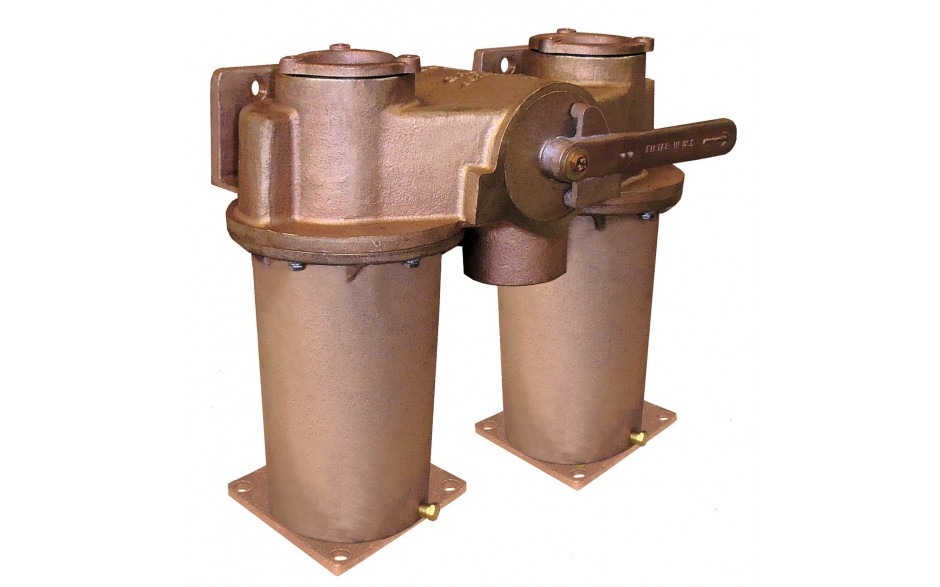

2" Duplex Strainer with Monel Basket

 FEATURES

  • ABS compliant with full C84400 bronze construction.
  • No tie rods or gaskets.
  • Easy service with screw-on cap.
  • Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
  • #304 stainless steel filter baskets are standard
  • Monel basket available.

Additional Information
Spec Sheet No
Basket Type Monel
Thread NPT 2"
Open Area Ratio 14
Dimensions
Thread NPT2"
A14.7
B17.2
C10.2
D5.1
E3.9
Open Area Ratio14
dimensions image
 Download Image  Open in New Window
Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    ARG-1501-C
    $235.00
    Qty Per Unit: 2
  • 2
    2-238
    $3.00
    Qty Per Unit: 2
  • 3
    2-234
    $3.00
    Qty Per Unit: 3
  • 4
    2-256
    $4.00
    Qty Per Unit: 2
  • 5
    AARG-2003
    $2,279.00
    Qty Per Unit: 2
  • 6
    14FS
    $1.00
    Qty Per Unit: 12
  • 7
    14SS
    $1.00
    Qty Per Unit: 12
  • 8
    1420X34HS
    $1.00
    Qty Per Unit: 12
  • 9
    1418HB
    $7.00
    Qty Per Unit: 4
  • 10
    BM-10
    $345.00
    Qty Per Unit: 2
  • 11
    5818HB
    $8.00
    Qty Per Unit: 1
  • 12
    VD-B
    $11.00
    Qty Per Unit: 1
  • 13
    932-2000 BPA
    $6,156.00
    Qty Per Unit: 1
  • 16
    2-236
    $2.00
    Qty Per Unit: 1
