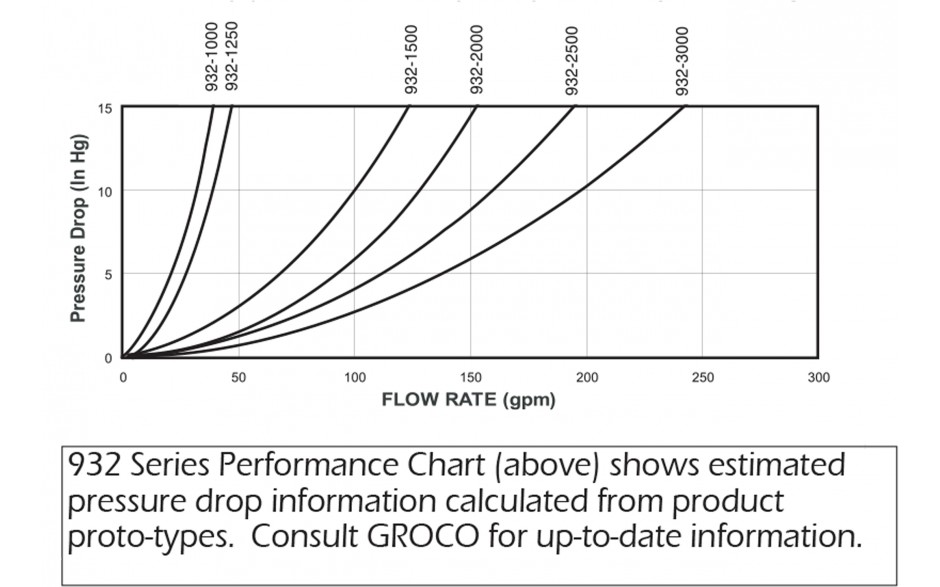

  • flow-chart

933-2000-00

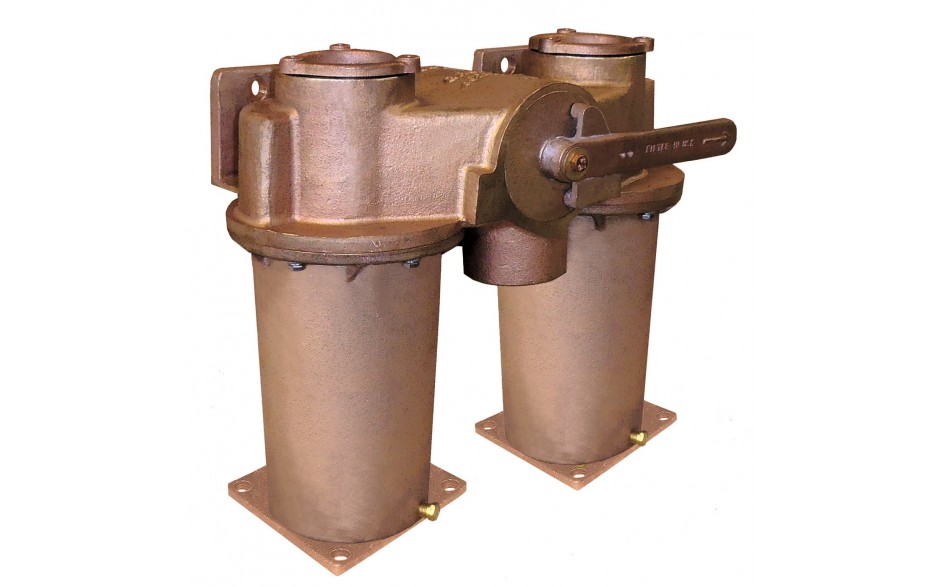

2" Duplex Strainer with #304 SS Basket

 FEATURES

  • ABS compliant with full C84400 bronze construction.
  • No tie rods or gaskets.
  • Easy service with screw-on cap.
  • Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
  • #304 stainless steel filter baskets are standard
  • Monel basket available.

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel
Thread NPT 2"
Open Area Ratio 14
Dimensions
Thread NPT2"
A14.7
B17.2
C10.2
D5.1
E3.9
Open Area Ratio14

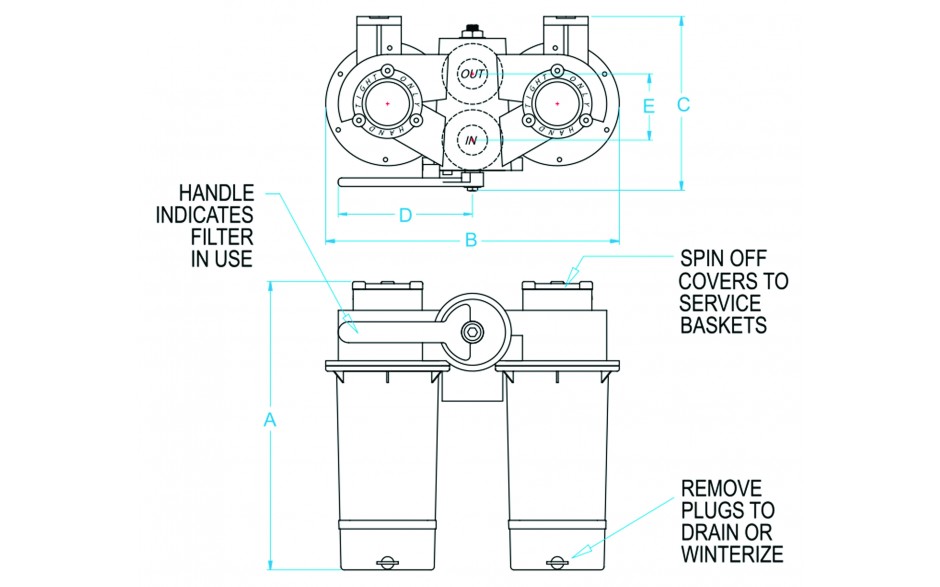

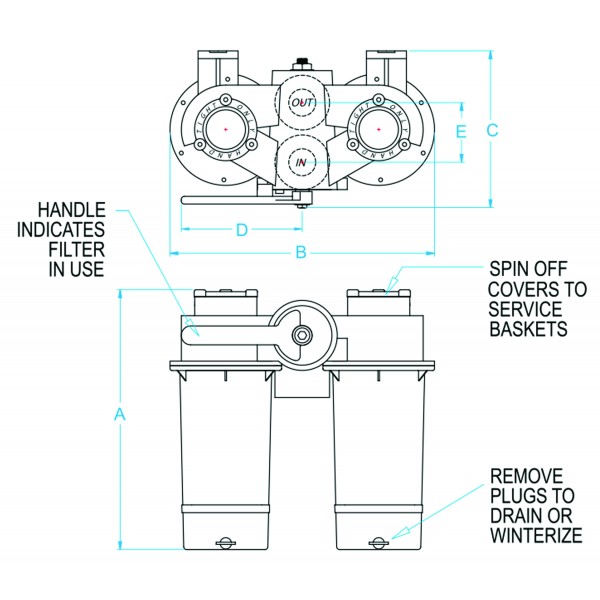

dimensions image
 Download Image  Open in New Window
Individual Parts

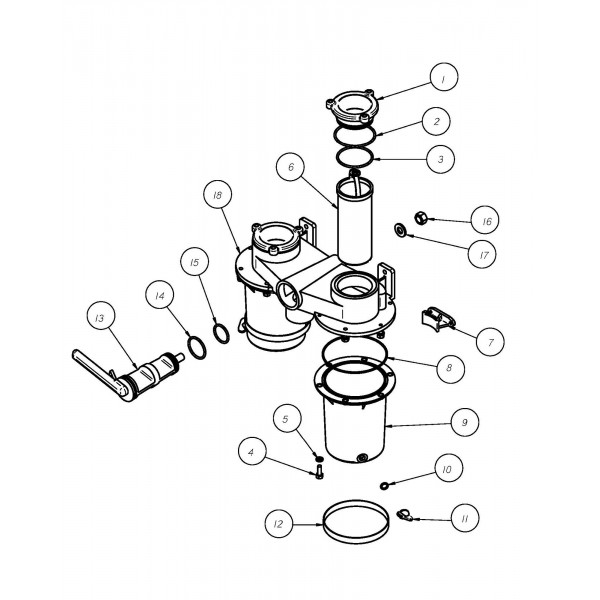

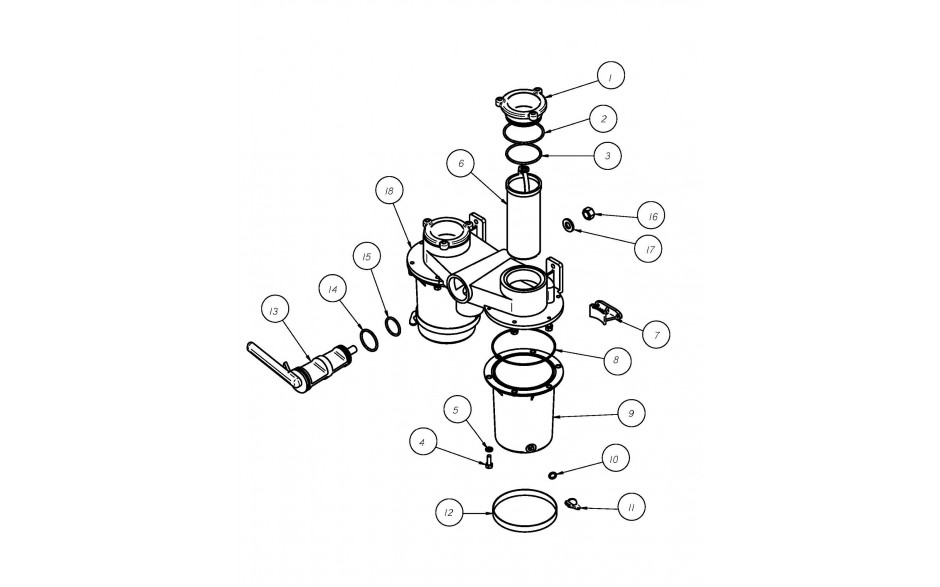

exploded image
 Download Image  Open in New Window
  • 1
    ARG-1501-C
    $270.00
    Qty Per Unit: 2
  • 2
    2-238
    $3.00
    Qty Per Unit: 2
  • 3
    2-234
    $3.00
    Qty Per Unit: 3
  • 4
    2-256
    $4.00
    Qty Per Unit: 2
  • 5
    AARG-2003
    $2,596.00
    Qty Per Unit: 2
  • 6
    14FS
    $1.00
    Qty Per Unit: 12
  • 7
    14SS
    $1.00
    Qty Per Unit: 12
  • 8
    1420X34HS
    $1.00
    Qty Per Unit: 12
  • 9
    1418HB
    $12.00
    Qty Per Unit: 4
  • 10
    BS-10
    $97.00
    Qty Per Unit: 2
  • 11
    5818HB
    $9.00
    Qty Per Unit: 1
  • 12
    VD-B
    $4.00
    Qty Per Unit: 1
  • 13
    932-2000 BPA
    $7,032.00
    Qty Per Unit: 1
  • 16
    2-236
    $2.00
    Qty Per Unit: 1
