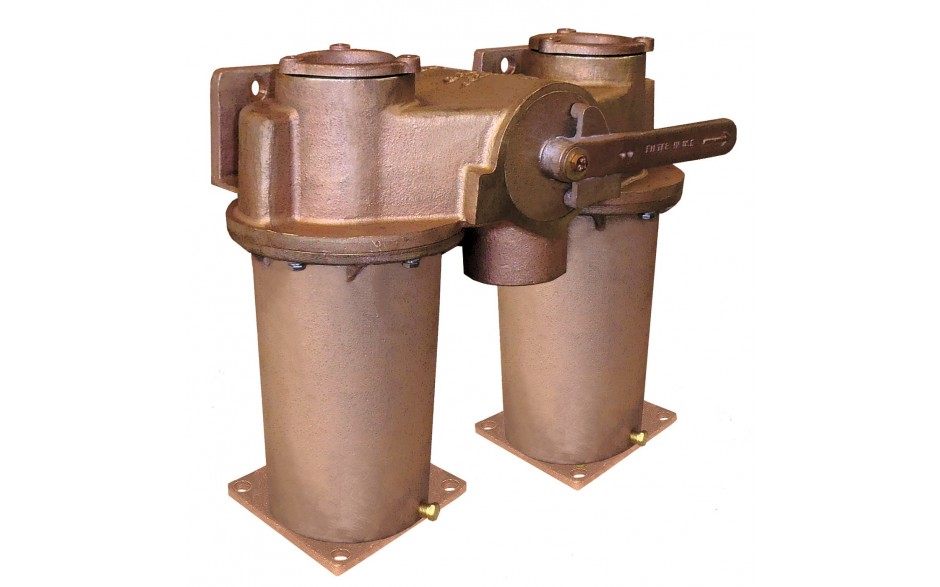

933-1500 Series

1-1/2" Duplex Strainer

 FEATURES

  • ABS compliant with full C84400 bronze construction.
  • No tie rods or gaskets.
  • Easy service with screw-on cap.
  • Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
  • #304 stainless steel filter baskets are standard
  • Monel basket available.

Additional Information
Spec Sheet No
Thread NPT 1-1/2"
Open Area Ratio 20

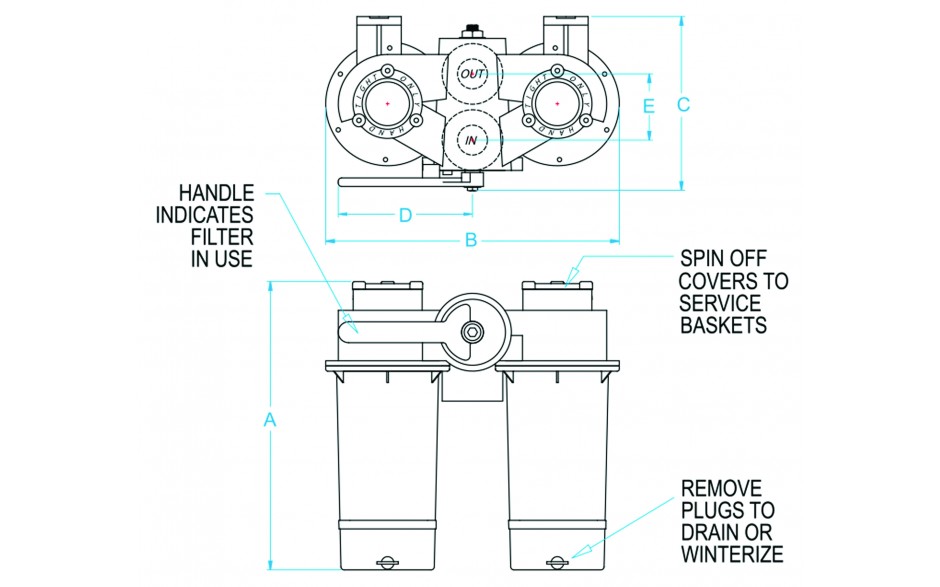

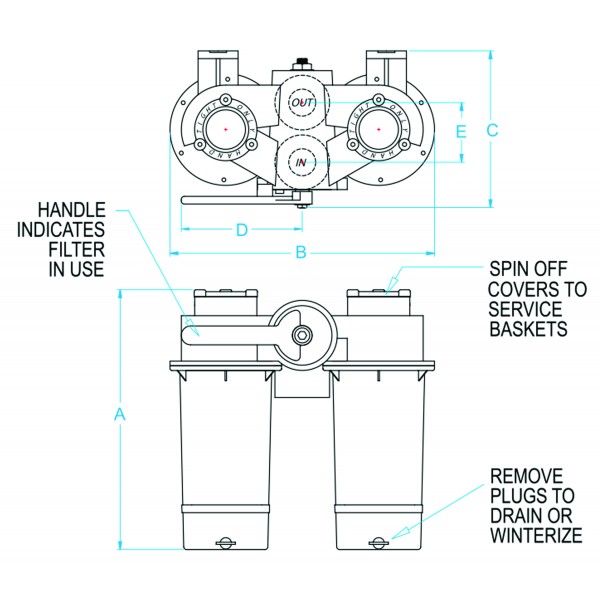

Dimensions
Thread NPT1-1/2"
A12.8
B17.2
C10.2
D5.1
E3.9
Open Area Ratio20

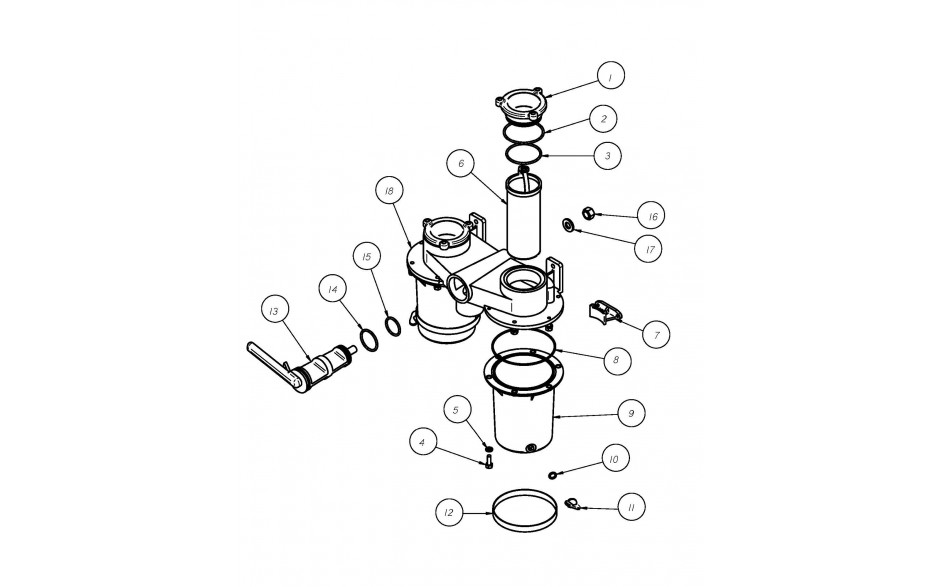

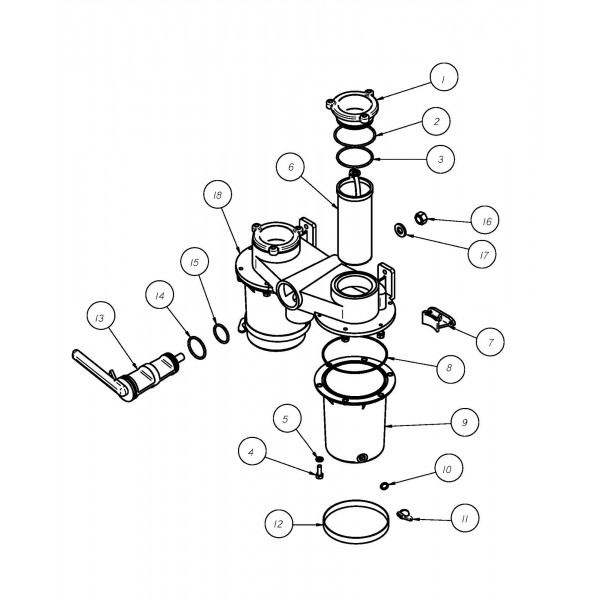

Individual Parts
  • 1
    ARG-1501-C
    $154.00
    Qty Per Unit: 2
  • 2
    2-236
    $3.00
    Qty Per Unit: 3
  • 3
    2-234
    $2.00
    Qty Per Unit: 3
  • 4
    2-256
    $3.00
    Qty Per Unit: 2
  • 5
    AARG-1503
    $1,117.00
    Qty Per Unit: 2
  • 6
    14FS
    $1.00
    Qty Per Unit: 12
  • 7
    14SS
    $1.00
    Qty Per Unit: 12
  • 8
    1420X34HS
    $1.00
    Qty Per Unit: 12
  • 9
    1418HB
    $5.00
    Qty Per Unit: 4
  • 10
    BS-9
    $52.00
    Qty Per Unit: 2
  • 10
    BM-9
    $130.00
    Qty Per Unit: 2
  • 10
    BP-9
    $53.00
    Qty Per Unit: 2
  • 11
    5818HB
    $6.00
    Qty Per Unit: 1
  • 12
    VD-B
    $7.00
    Qty Per Unit: 1
  • 13
    932-1500 BPA
    $4,117.00
    Qty Per Unit: 1
