932-3000-00

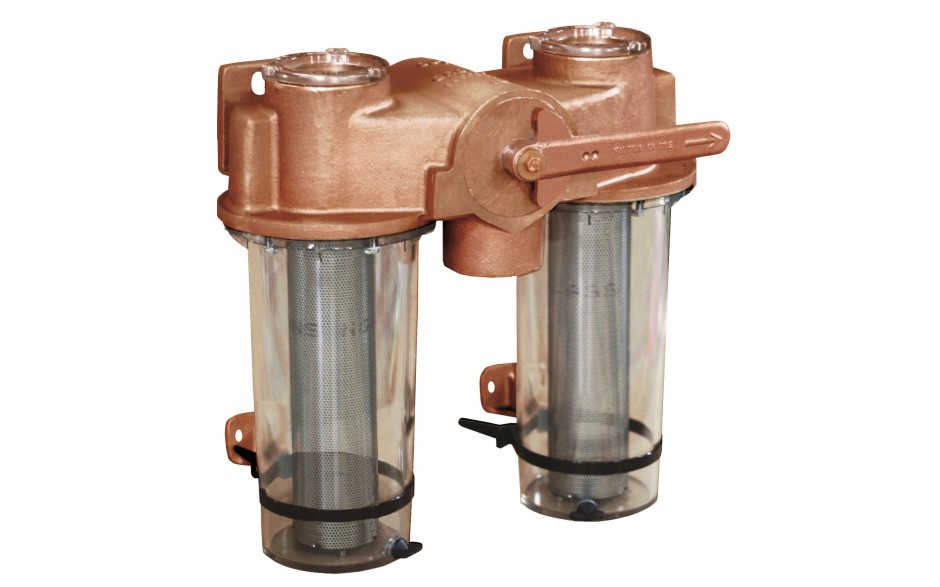

3" Duplex Strainer with #304 SS Basket

 FEATURES

  • No tie rods or gaskets.
  • Easy service with screw-on cap.
  • Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
  • C84400 bronze construction.
  • #304 stainless steel filter baskets are standard
  • Monel basket available.
  • ABS Compliant version available with bronze enclosures. 933 Series.

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel
Thread NPT 3"
Open Area Ratio 9

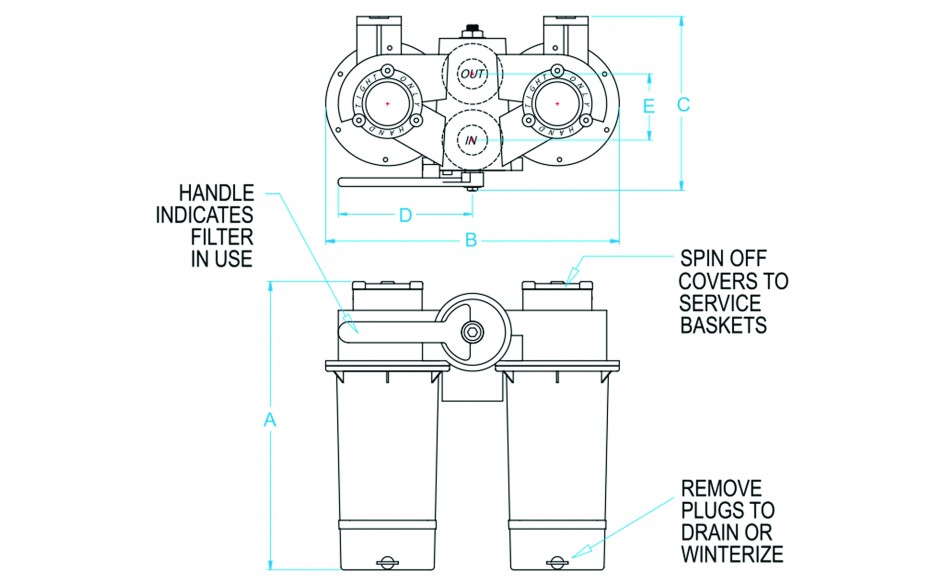

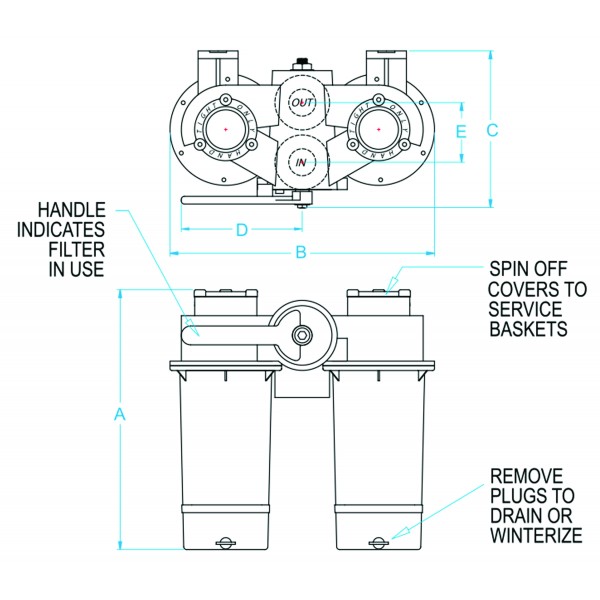

Dimensions
Thread NPT3"
A20
B17.5
C12.6
D6.3
E5.5
Open Area Ratio9

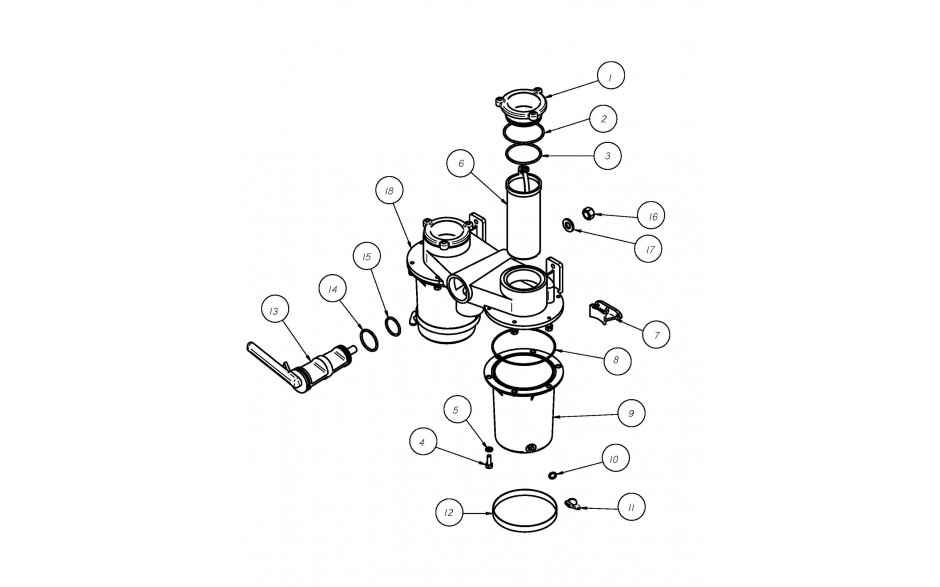

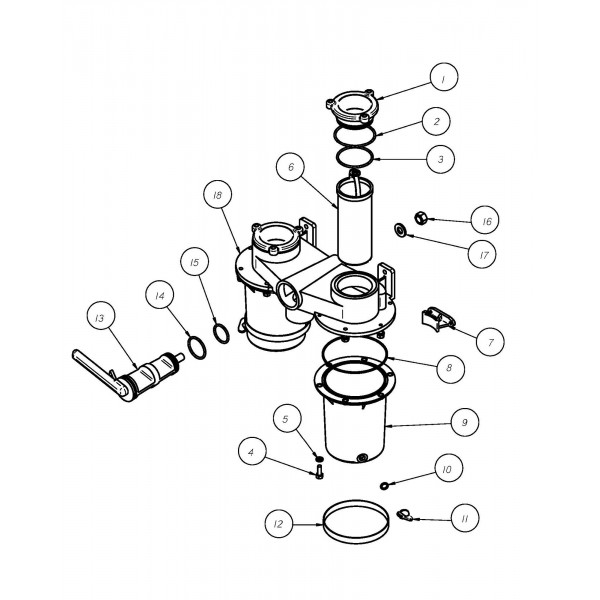

Individual Parts
  • 1
    ARG-1501-PC
    $35.00
    Qty Per Unit: 2
  • 2
    2-234
    $2.00
    Qty Per Unit: 2
  • 3
    2-238
    $2.00
    Qty Per Unit: 2
  • 4
    1420X34HS
    $1.00
    Qty Per Unit: 12
  • 5
    PFW-2 SET
    $3.00
    Qty Per Unit: 2
  • 6
    BS-15
    $55.00
    Qty Per Unit: 2
  • 6
    BM-15
    $186.00
    Qty Per Unit: 2
  • 6
    BP-15
    $55.00
    Qty Per Unit: 2
  • 7
    932-3004-00
    $97.00
    Qty Per Unit: 2
  • 8
    2-256
    $3.00
    Qty Per Unit: 2
  • 9
    ARG-3003
    $198.00
    Qty Per Unit: 2
  • 10
    2-111
    $1.00
    Qty Per Unit: 2
  • 11
    ARG-756
    $4.00
    Qty Per Unit: 2
  • 12
    ARG-1502
    $5.00
    Qty Per Unit: 2
  • 13
    932-3000 BPA
    $6,748.00
    Qty Per Unit: 1
  • 14
    2-438
    $8.00
    Qty Per Unit: 1
  • 15
    2-432
    $7.00
    Qty Per Unit: 1
  • 15
    2-423
    $11.00
    Qty Per Unit: 1
  • 16
    3416HB
    $19.00
    Qty Per Unit: 1
  • 17
    VD-C
    $9.00
    Qty Per Unit: 1
