932-1000-00

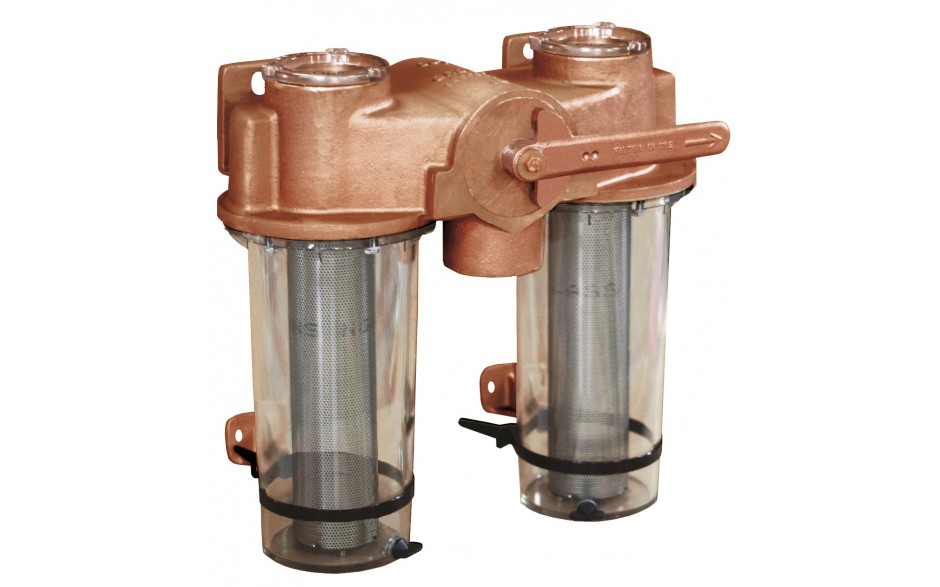

1" Duplex Strainer with #304 SS Basket

 FEATURES

  • No tie rods or gaskets.
  • Easy service with screw-on cap.
  • Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
  • C84400 bronze construction.
  • #304 stainless steel filter baskets are standard
  • Monel basket available.
  • ABS Compliant version available with bronze enclosures. 933 Series.

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel
Thread NPT 1"
Open Area Ratio 28

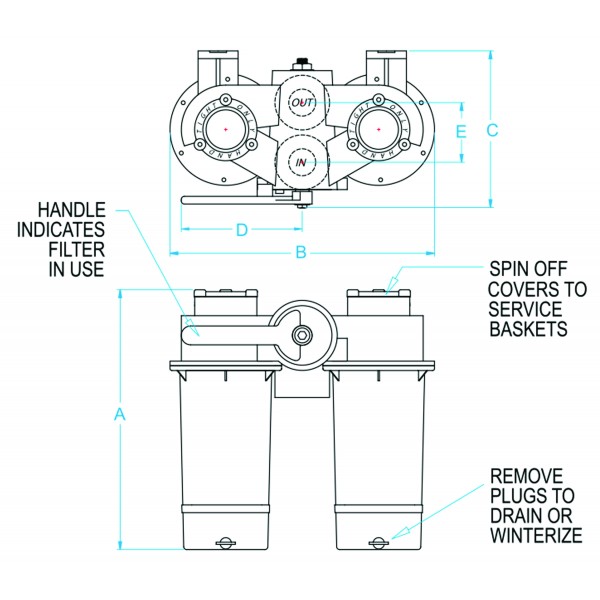

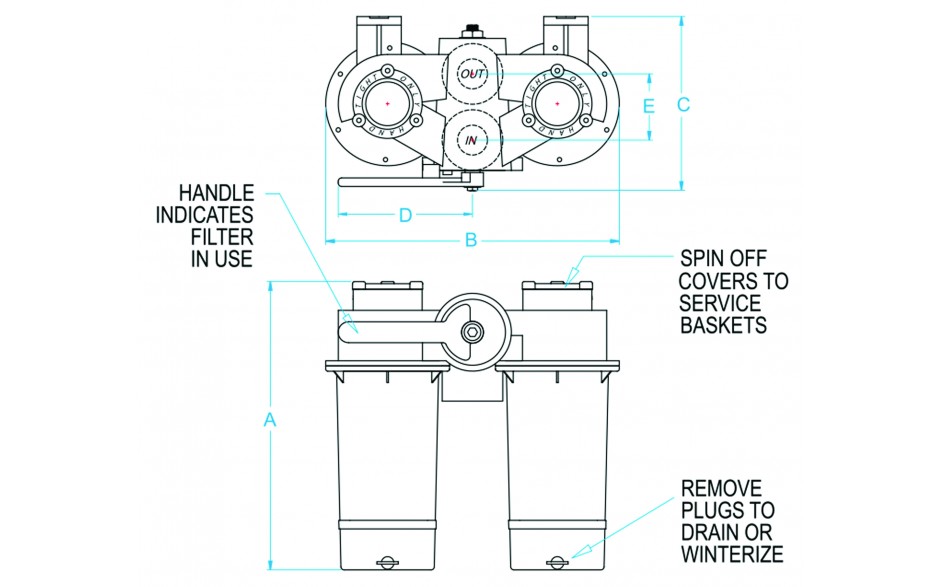

Dimensions
Thread NPT1"
A9.4
B13.5
C6.5
D3.3
E2.5
Open Area Ratio28

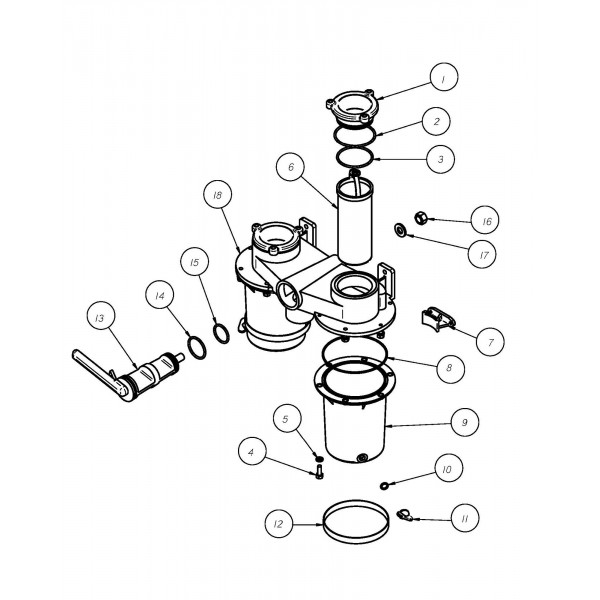

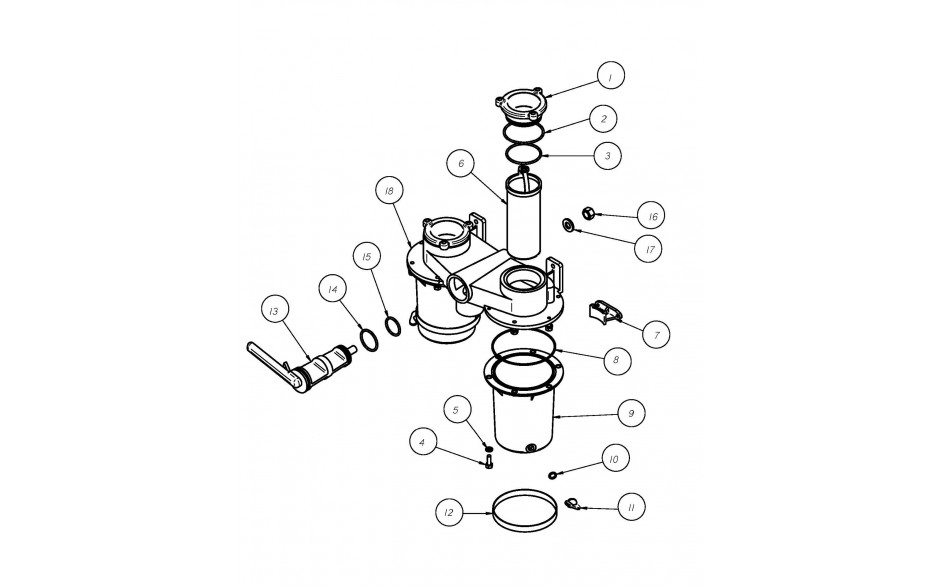

Individual Parts
  • 1
    ARG-1001-PC
    $27.00
    Qty Per Unit: 2
  • 2
    2-229
    $2.00
    Qty Per Unit: 2
  • 3
    2-232
    $2.00
    Qty Per Unit: 2
  • 4
    1420X34HS
    $1.00
    Qty Per Unit: 12
  • 5
    PFW-2 SET
    $4.00
    Qty Per Unit: 2
  • 6
    BS-3
    $44.00
    Qty Per Unit: 2
  • 7
    ARG-1004
    $24.00
    Qty Per Unit: 2
  • 8
    2-153
    $2.00
    Qty Per Unit: 2
  • 9
    ARG-1003
    $62.00
    Qty Per Unit: 2
  • 10
    2-111
    $1.00
    Qty Per Unit: 2
  • 11
    ARG-756
    $4.00
    Qty Per Unit: 2
  • 12
    ARG-502
    $5.00
    Qty Per Unit: 2
  • 13
    932-1000 BPA
    $1,435.00
    Qty Per Unit: 1
  • 14
    2-222
    $2.00
    Qty Per Unit: 1
  • 15
    2-218
    $1.00
    Qty Per Unit: 1
  • 16
    1220HB
    $4.00
    Qty Per Unit: 1
  • 17
    VD-A
    $6.00
    Qty Per Unit: 1
