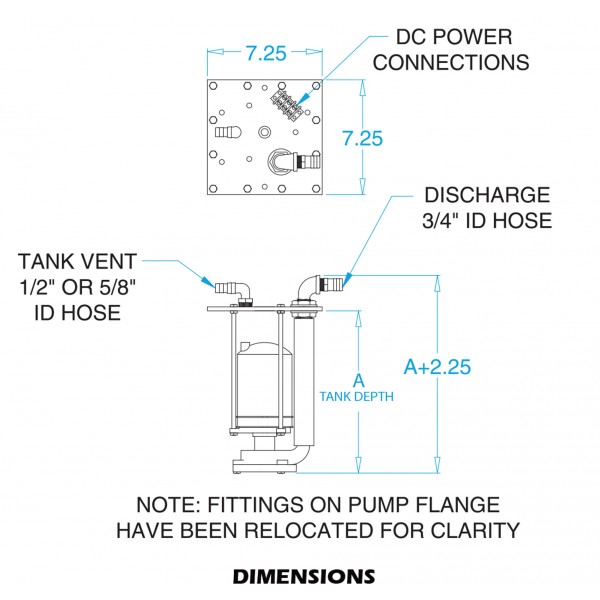

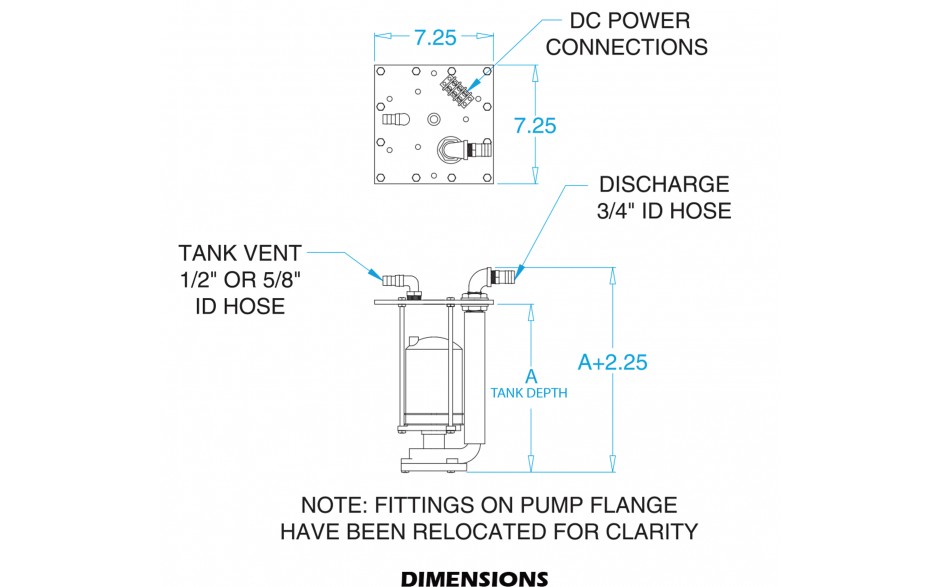

  • dimensions

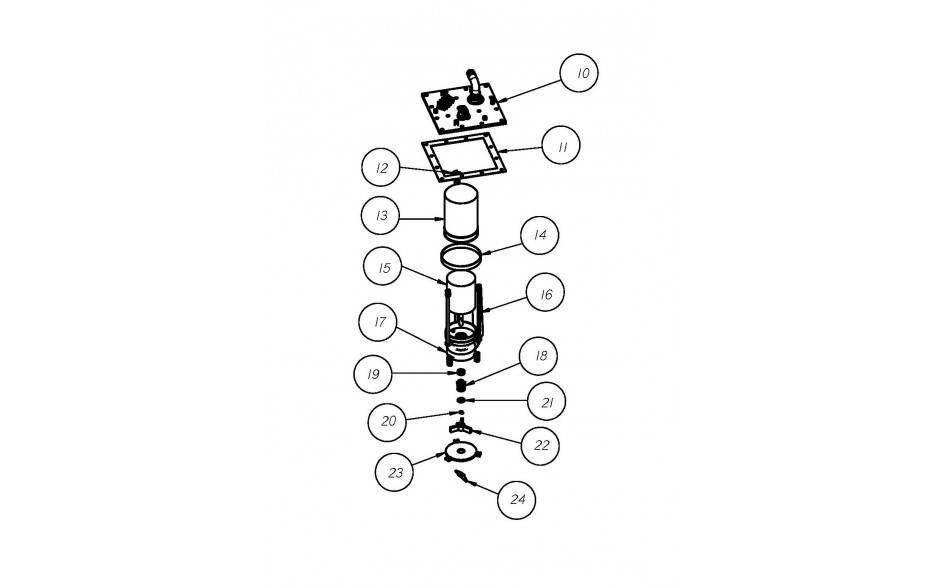

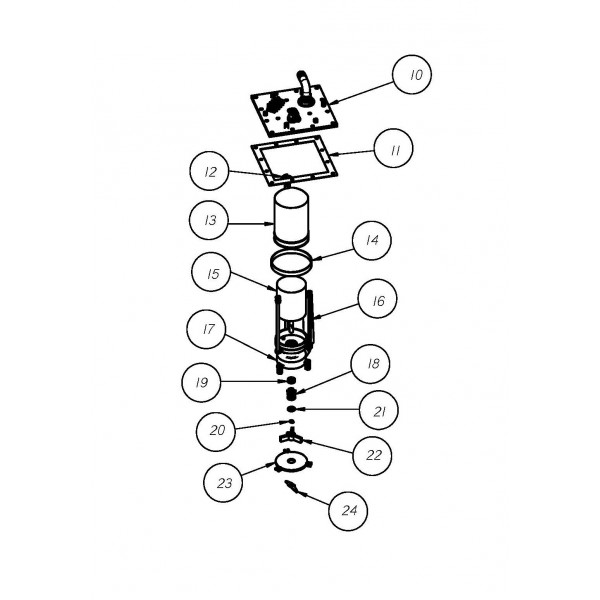

  • exploded

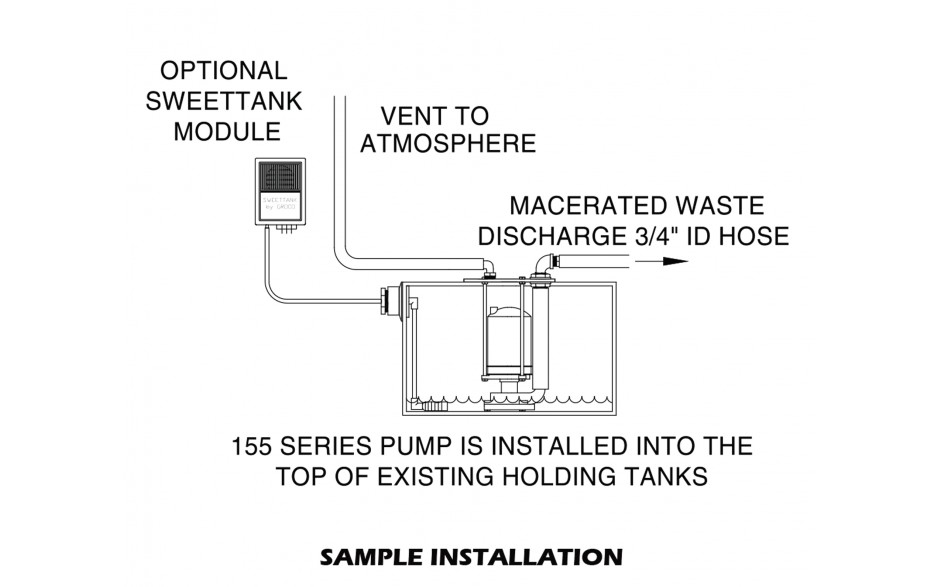

  • installation

155-6110-24

THE CONCEPT

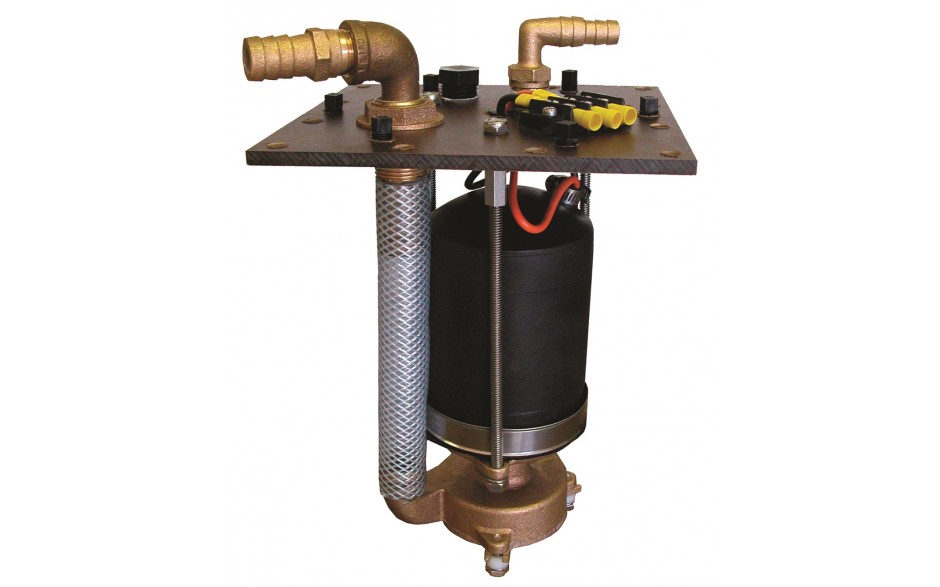

155 Series waste macerator pumps make fast work (17 GPM) of holding tank pump-out. Sizes are available to fit any rigid holding tank (36" maximum depth, 1" inch increments), and since waste is macerated BEFORE it leaves the tank, smaller hose and overboard seacock (3/4") may be used in the discharge line.

NOTE: New pump installations require GROCO # MP Hardware (tank hardware kit), ordered separately.



HOW TO ORDER

Determine tank depth in inches, as measured from the top outside to the bottom inside.  Order 155-61XX-YY (XX = tank depth) (YY = voltage).  Call GROCO for details.

Individual Parts
  • 10
    MPS-602 ASSY
    $327.00
    Qty Per Unit: 1
  • 11
    01-0001-50
    $31.00
    Qty Per Unit: 1
  • 12
    CLAMP-14
    $3.00
    Qty Per Unit: 1
  • 13
    SBP-204
    $168.00
    Qty Per Unit: 1
  • 14
    CLAMP-6
    $21.00
    Qty Per Unit: 1
  • 15
    24V-C-MPS
    $739.00
    Qty Per Unit: 1
  • 17
    MPS-600
    $258.00
    Qty Per Unit: 1
  • 18
    009-0375-00
    $85.00
    Qty Per Unit: 1
  • 19
    037-075-8
    $6.00
    Qty Per Unit: 1
  • 20
    SNAP RING-2
    $3.00
    Qty Per Unit: 1
  • 21
    500-K
    $1.00
    Qty Per Unit: 1
  • 22
    MP-603
    $32.00
    Qty Per Unit: 1
  • 23
    MP-601
    $41.00
    Qty Per Unit: 1
  • 24
    MP-727
    $45.00
    Qty Per Unit: 1
