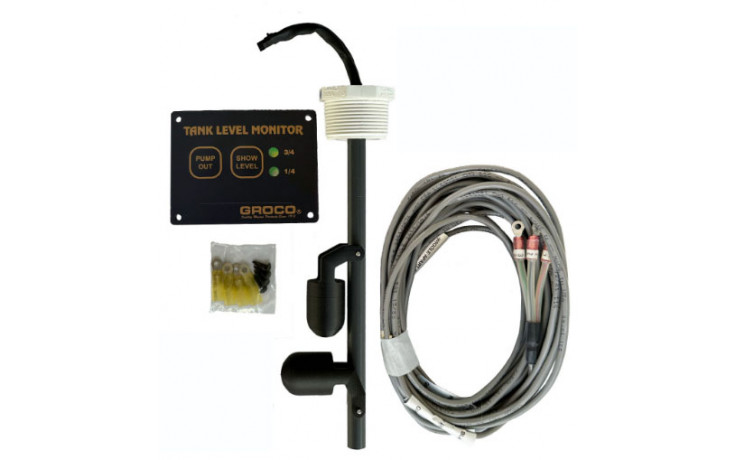

TLM-10

FEATURES

  • The gasketed indicator panel is suitable for wet locations such as combination shower/head compartments.  The sending unit screws into any 1-1/2" NPT threaded tank- top opening.
  • If there is no 1-1/2" NPT opening available, TLM can be installed into a 2-1/2" hole cut into the tank top. Installation hardware is included.
  • Level indications are 1/4 full and 3/4 full.
  • A 20-amp momentary switch is provided to activate a macerator pump.
  • Standard model (TLM-10) is for use in tanks 10" to 12" deep.  Custom lengths are available.
  • Specify TLM-XX   (XX = tank depth in inches).
  • For 12V, 24V, or 32V DC systems.
