FBVE-4000 24V

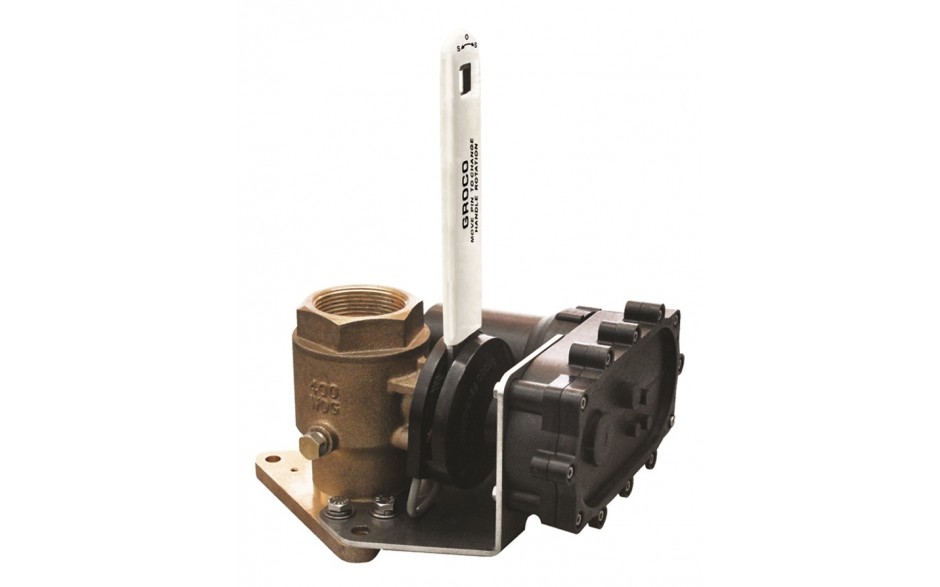

4"Bronze 24 Volt Electric Flanged Seacock

Features:

  • Motorized (12V or 24V) valve operation for seacock sizes 3/4" to 3" (4" and 5" available soon).
  • Manual valve operation if power is lost.
  • Automatic operation feature prevents engine flooding.
  • Requires less than 1 amp of power.
  • Gearbox is IP-67 rated and CP-712 compliant.
  • NMEA2000 ready.
  • UL listed seacock includes grease zerk fitting for lubrication.

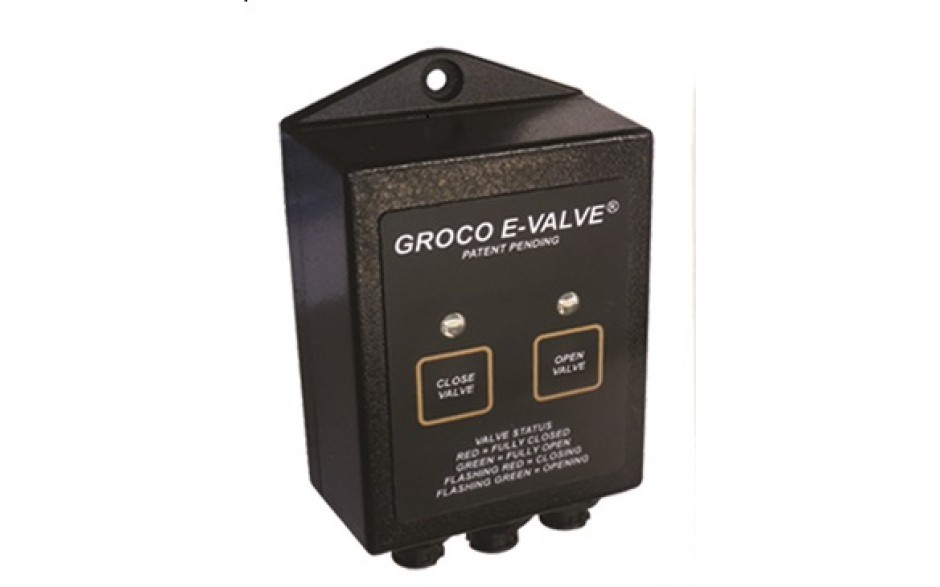

  • Push button control from the engine room with basic E-valve; wireless control from the helm with optional LCD-5 touchscreen.

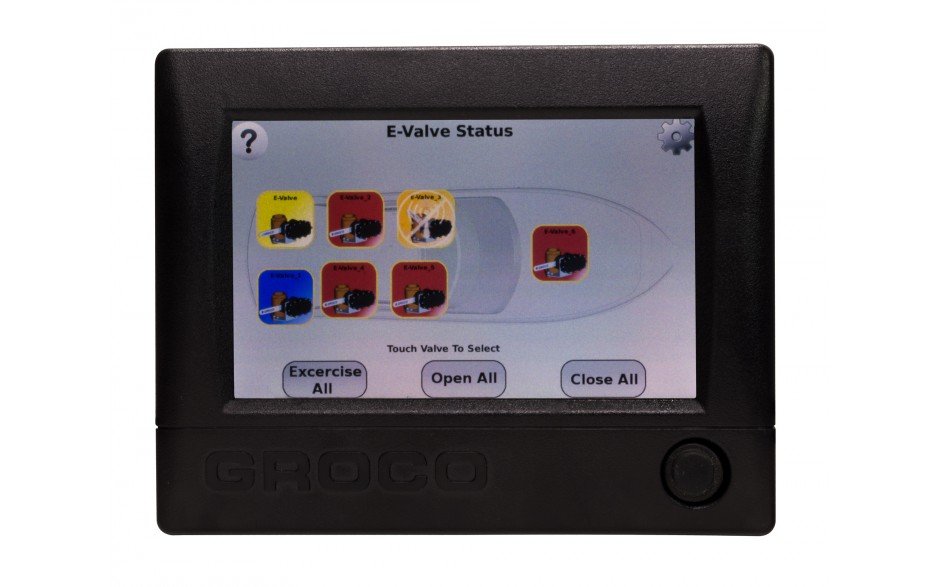

  • Optional LCD-5 touchscreen displays and operates multiple E-valves and provides many safety and convenience functions.

Additional Information
Thread Bottom NPS 4"
Thread Top NPT 4"
F -

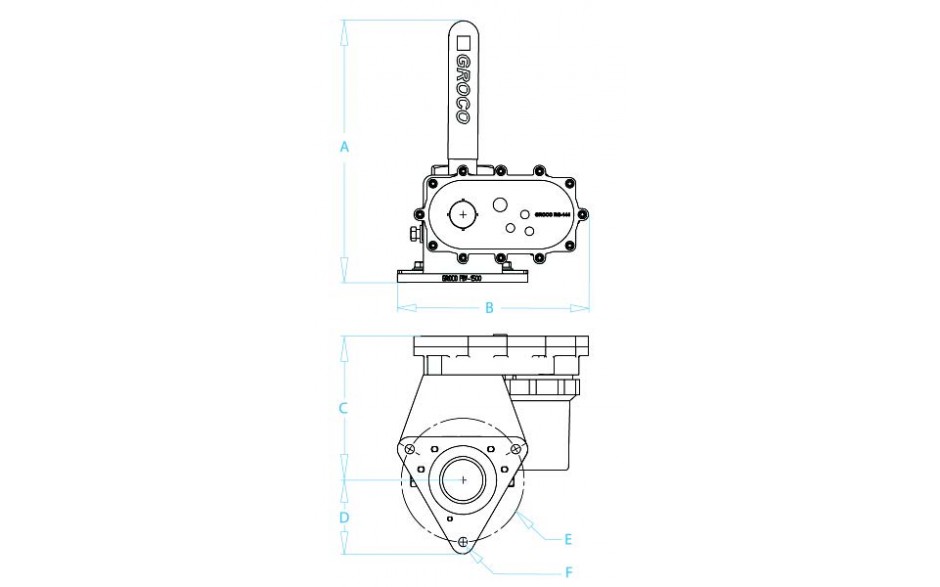

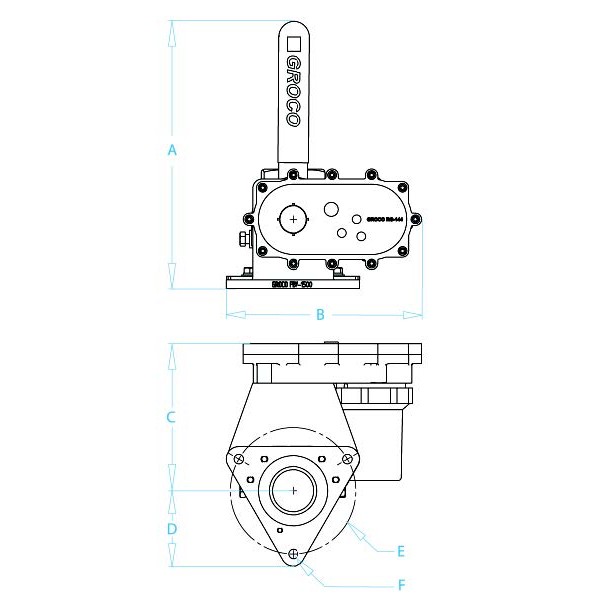

Dimensions
Thread Bottom NPS4"
Thread Top NPT4"
A -
B -
C -
D -
E -
F -
