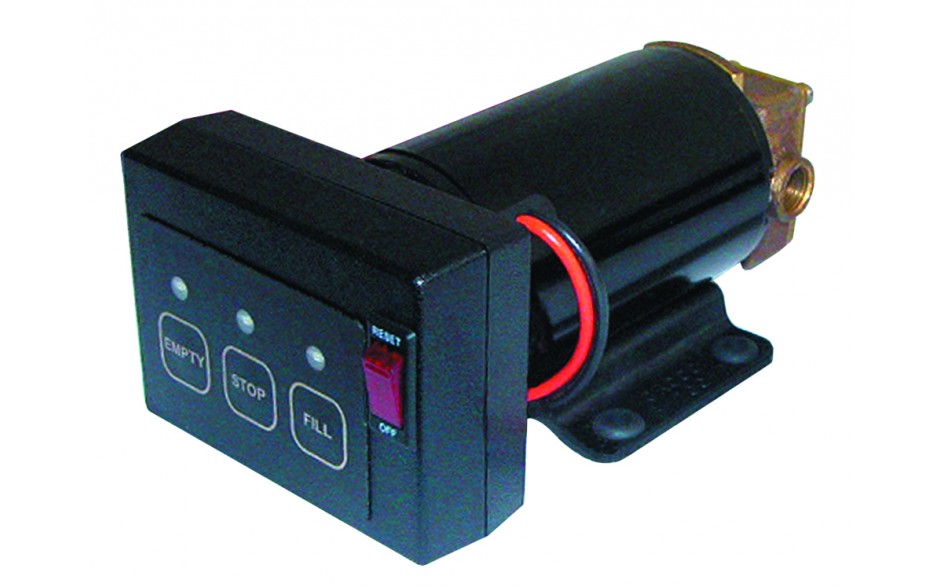

GPBRT-1 24V

Positive Displacement Reversing Gear Pump

The Concept:

    Made in the USA GROCO Gear Pumps are self-priming, instantly reversible, and are capable of operation in either direction.  Relatively low flow (less than vane pumps) makes them suitable for duties such as deck-wash, fuel transfer, ballast transfer, and oil change. All models have an ignition protected motor, #316 stainless steel shaft, and are available in models that provide reversing (R), remote reversing (RR), and reversing with touchpad (RT) control options.

Additional Information
Self Priming Yes
Thread NPT 3/8"
Control Type Pump Mounted Touch Pad
Max GPM 3
Breaker DC 15 amp

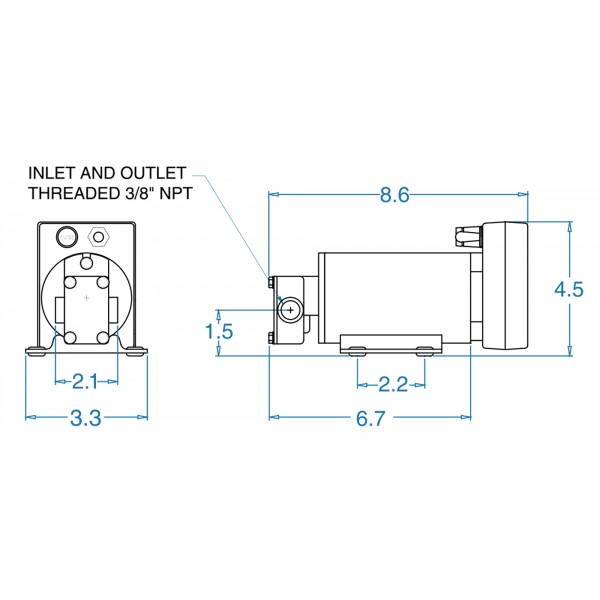

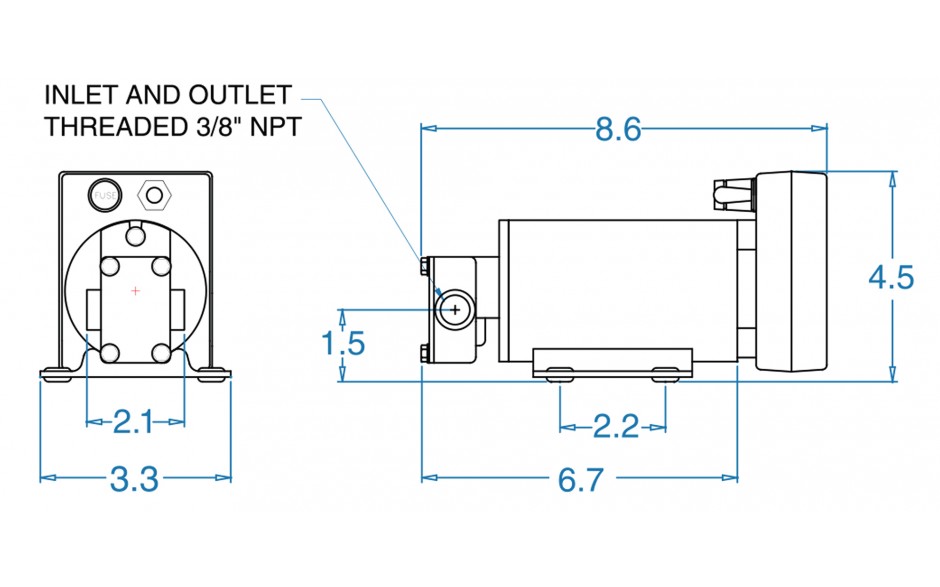

Dimensions
Self PrimingYes
Thread NPT3/8"
Control TypePump Mounted Touch Pad
Max GPM3
Breaker DC15 amp
dimensions image
 Download Image  Open in New Window

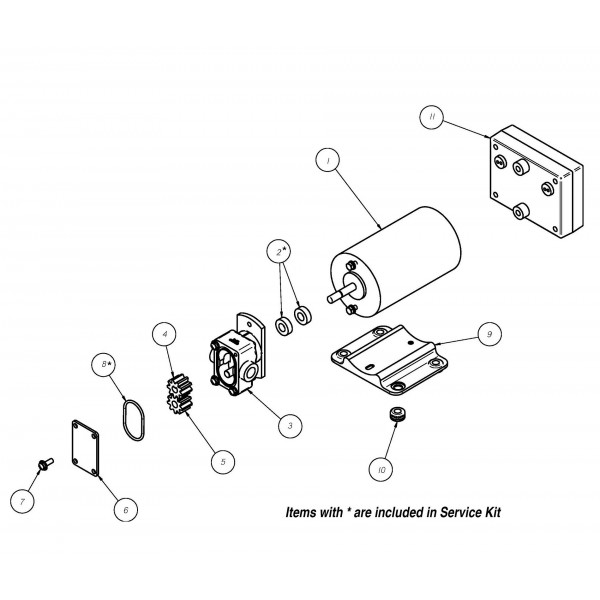

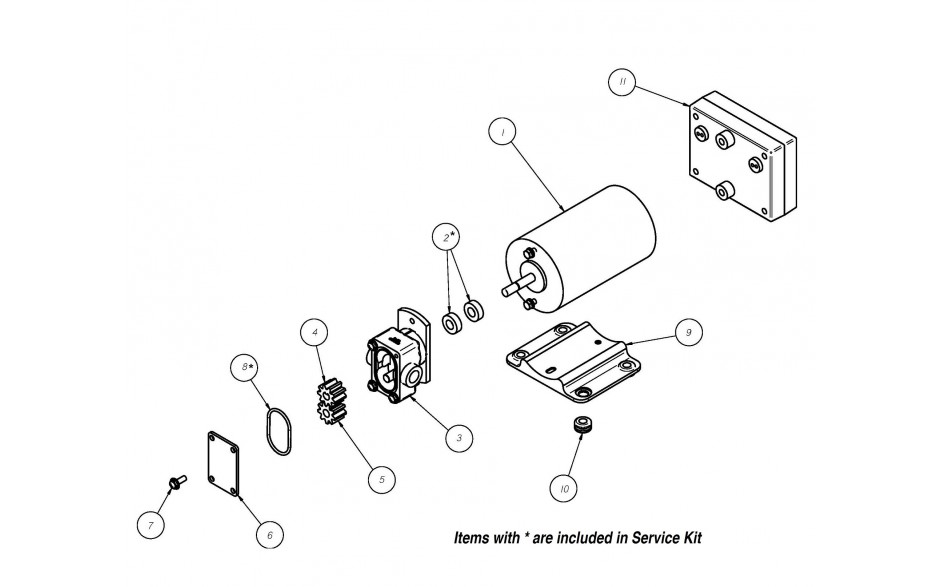

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    24V-F
    $546.00
    Qty Per Unit: 1
  • 2
    031-075-8
    $3.00
    Qty Per Unit: 2
  • 3
    GP-1-375B
    $166.00
    Qty Per Unit: 1
  • 4
    GP-09-0938
    $14.00
    Qty Per Unit: 1
  • 5
    GPK-09-0938
    $14.00
    Qty Per Unit: 1
  • 6
    GP-1-C
    $19.00
    Qty Per Unit: 1
  • 7
    1032X38HSL
    $3.00
    Qty Per Unit: 4
  • 8
    2-029
    $1.00
    Qty Per Unit: 1
  • 9
    B-200-P
    $6.00
    Qty Per Unit: 1
  • 10
    06-0001-00
    $2.00
    Qty Per Unit: 1
  • 11
    REV-D ASSY
    $594.00
    Qty Per Unit: 1
